Multicore Splice Wall Mount Fiber Enclosure Overhead Drop Cable Anti Rusting
Product Details:
| Place of Origin: | SHENZHEN |
| Brand Name: | KEXINT |
| Certification: | ISO-9001 |
| Model Number: | KXT-C-2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton Packaging |
| Delivery Time: | 8 |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 150+pcs+10day |
|
Detail Information |
|||
| Fiber Optical Quantity: | 24cores 48cores 72cores 96cores | Sealing Standard: | IP68 |
|---|---|---|---|
| Material: | TTP | Colour: | Black |
| Size: | 385*245*130 | Application: | FTTH |
| Application Environment: | When Laid Overhead, In The Pipeline, Underground Or In The Well. | Cable Ports (inlet/outlet): | 2 In/ 24 Out |
| Highlight: | fiber optic cable termination box,fiber optic joint box |
||
Product Description

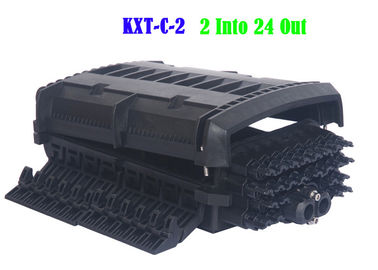

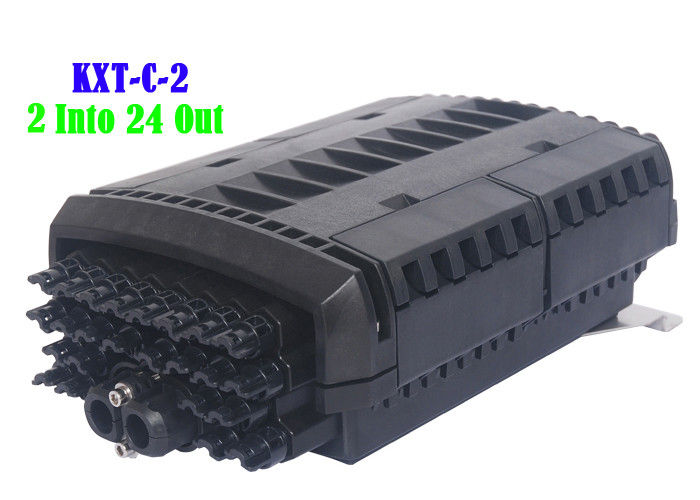

Fiber Optic Splice Closure Multicore Fiber Splicing Box KXT-C-02 Wall Hanging and Pole Installation
KXT-C-02 fiber access termination closure is able to hold
up to 16-24 subscribers and 96 splicing points as closure.
It is used as a splicing closure and a termination point for
the feeder cable to connect with drop cable in FTTx
network system. It integrates fiber splicing, splitting,
distribution, storage and cable connection in one solid
protection box.
Features:
1.Water-proof design with IP-68 Protection level.

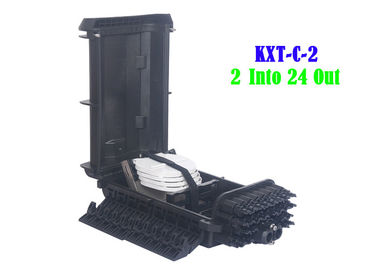

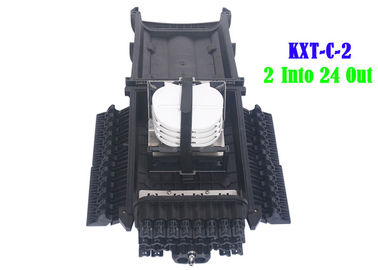

2. Integrated with flap-up splice cassette and adaptor holder.
3. Impact test:IK10,Pull Force:100N,Full rugged design
4. All stainless metal plate and anti-rusting bolts,nuts.
5. Fiber bend radius control more than 40mm.
6. Suitable for the fusion splice or mechanical splice.
7. 2 pcs of 1*8 Splitter can be installed as an option.
8. Mechanical sealing structure and mid-span cable entry.
9. 16 ports cable entrance for drop cable.
10. 24 adaptors for drop cable patching.
Configuration:
| Material | Size | Max Capacity | Nos of Adaptor | Weight | Color | |
| Strengthen Polymer Plastic |
A*B*C(mm) 385*245*130 |
Splice 96 Fibers (4trays,24 fiber/tray) |
PLC Splitter 2pcs of 1x8 |
24pcs of SC | 4.5kg | Black |
Applications
Wall mounting and pole mounting installtion
FTTH pre-installation and filed installation
4-7mm cable ports suitable for 2x3mm indoor FTTH drop cable and outdoor figure 8 FTTH self-supporting drop cable
Standard Accessories
Splice cassette and cable management tool, installation nuts and bolts, protection sleeves,
hose clamp, cable tube, wreach, cover holder, rubber seal for cable entrance.
Parts list
Main kits
| S/N | Description | Quantity | Note |
| 1 | Lid | 1 | 337(L)×242(W)×63(H)mm. |
| 2 | Base | 1 | |
| 3 | Sealing ring | 1 | Box sealing |
| 4 | sealing parts | 24 | Sealing cable ports |
| 5 | Splice tray | 4 | For cable splicing and storage |
| 6 | Splice tray cover | 1 | |
| 7 | Splice tray bandage | 1 | Fixing several splice trays |
| 8 | Fastener bolt | 2 | Fixing lid and cover of closure |
| 9 | Buckle | 4 | Fixing lid and cover of closure |
| 10 | Tight nuts | 24 | Sealing soft cable ports |
| 11 | Tight tool | 1 | Special for tight the nuts |
| 12 | Cable fixing panel | 1 | Fixing un-cut cable |
| 13 | Adaptor installation panel | 4 | An adaptor panel for 6 SC simplex adaptors |
| 14 | Splice tray bracket | 1 | Install 4 splice trays |
| 15 | Top cover stopper | 1 | Limit top cover |
Standard parts
| S/N | Description | Quantity | Note |
| 16 | Wall mounting kit | 1 | For wall mounting |
| 17 | Expansion anchor bolt | 2 | Parts of the wall mounting kit |
| 18 | Hexagon bolt | 2 | Parts of the wall mounting kit |
| 19 | Nylon tie(3*120mm) | 12 | Fixing cable |
| 20 | Fusion sleeve(Φ1.0*60mm) | According to the fiber cores. | Cable splicing |
| 21 | 0.2m coil tube | 1 | Protect the fiber |
| 22 | Insulation tape | 1 | Accessorial fixation |
| 23 | 0.5m EVA tube | 1 | Protect fiber |
| 24 | Drier | 1 |
Optional parts
| S/N | Description | Quantity | Note |
| 25 | Pole mounting kit | 1 | For pole mounting |
| 26 | Valve | 1 | Testing sealing performance |
Working procedure
Un-cut cable working procedure
Product Installation
Packing, transportation and storage
This equipment packaging is moisture-proof and earthquake-proof. The accessories are packed first plastic
bags, then into the boxes with plastic bags for sealing. There are moisture-proof and earthquake direction signs
outside the boxes.
It can’t be inverted in the transport and be free from rolling when carrying. Please load carefully and
prevent the collision. You should prevent it from heavy rain before installation. The temperature in the
transport should be controlled between-35℃ to +55℃.
The excessive accumulation of goods should be stored on the cartons. The treasury should away from the
erosion of corrosive gas equipment and the temperature should be below 45℃ and higher than -5℃, and
relative temperature should not be high in long-term(generally less than 75%).
