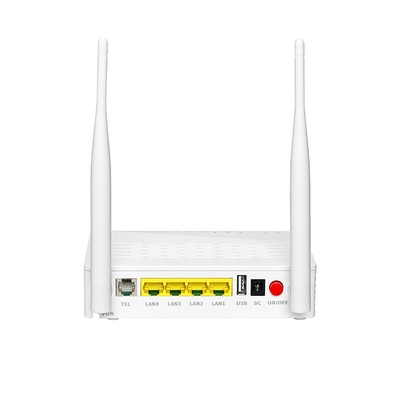

KEXINT KXT-GPE550 GEPON ONU 1 USB 2.0 Port Wireless Network WiFi Fibre ONT Modem
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | KEXINT |
| Certification: | ISO9001，CE, FCC |
| Model Number: | KXT-GPE550 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 Piece |
|---|---|
| Price: | USD 11.35-13.06/piece |
| Packaging Details: | 1 piece/carton |
| Delivery Time: | 7-15 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1500 pieces per month |
|
Detail Information |
|||
| Power Supply: | 12 V / 1 A | Rate: | Uplink 1.25Gbps, Downlink 2.5Gbps |
|---|---|---|---|
| Interface Type: | SC / APC | Warranty Time: | 3 Years |
| Use: | Wireless Network WiFi | Maximum Spectral Ratio: | 1:128 |
| Transmission Wavelength: | 1310 Nm | Receiving Wavelength: | 1490 Nm |
| Output Optical Power: | - 1 ~ + 4 DBm | Receiving Sensitivity: | < - 27 DBm |
| Storage Temperature: | - 40 ℃ ~ +70 ℃ | Operating Temperature: | - 5 ℃ ~ +55 ℃ |
| High Light: | Wireless Network GEPON ONU,1 USB 2.0 GEPON ONU,WiFi Fibre ONT Modem |
||
Product Description
KEXINT KXT-GPE550 Wireless Network WiFi Fiber Optical Equipment GEPON ONU
ONU equipment is composed of core functional circuits, power supply and management and other common units and communication interfaces. The core functional blocks include user and service multiplexing functions, transmission multiplexing functions, and ODN interface functions.
 |
Product Features
➤ Comply with ITU-T G.984 standard
➤ Comply with H.248, MGCP and SIP protocol standards
➤ Comply with 802.11 n/b/g protocol standard
➤ It supports layer 2 switching of Ethernet services and line speed forwarding of uplink and downlink services
➤ Support frame filtering and suppression
➤ Support the standard 802.1Q VLAN function and VLAN conversion
➤ 4094 VLANs supported
➤ Support dynamic bandwidth allocation
➤ Support PPPoE, IPoE, bridge and other services
➤ Support QoS, including service flow classification, priority marking, queuing and scheduling, traffic shaping and traffic control
➤ Support 2.6.3 IGM snooping
➤ Support Ethernet port speed limit, loop detection and layer-2 isolation
➤ Support power failure alarm
➤ Support remote reset and restart functions
➤ Support the function of restoring factory parameters
➤ Support data encryption
➤ Support status detection and fault reporting
➤ Support power lightning protection
➤ support GPON/EPON dual mode
|
|
|
Port Characteristics ✦ Power switch: power on/off
✦ Led button: LED indicator on/off
✦ WiFi button: wireless routing function on / off
✦ Power interface: connected to external power supply
✦ PON: connect the OLT equipment at the source end through the optical fiber line
✦ Telephone port: connected to user side equipment through telephone line
✦ WPS button: WPS is used to simplify WiFi wireless security settings and network management, that is, WiFi protection settings, which you can set according to the client Support and select the appropriate mode
✦ Ethernet port: connected to user side equipment through twisted pair network cable, LAN 1 port speed is 10/100/1000 m, adaptive, LAN 2-LAN 4 Port rate is 10/100 M adaptive
✦ Reset button: restart the equipment; Press and hold for more than 3 seconds and the system will return to the factory default
|
|
|
Item |
Value |
| DDR | 256 M |
| FLASH | 4 GB (4096*8 bit) |
| Optical Fiber Interface | 1 SC / APC fiber port |
| Ethernet Interface | 1 x 10 / 100 / 1000 M adaptive port (RJ45) 3 x 10 / 100 M adaptive ports (RJ45) |
| Telephone Interface | 1 4-core telephone port |
| Wireless WiFi | 2 external antennas IEEE 802.11 b/g/n compliant 2.4 GHz wireless network |
| USB Port | 1 USB 2.0 port |
