FC / UPC Bare Fiber Flange Fiber Square Type FC Bare Fiber Adaptor
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | KEXINT |
| Certification: | CE Iso-9001 Ross UL |
| Model Number: | FC female SC male optical fiber adaptor |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20000+PCS+Per week |
|
Detail Information |
|||
| Name: | Optical Fiber To Aux Adapter | Application: | Telecom CATV Network FTTX |
|---|---|---|---|
| Insertion Loss: | =< 0.2db | Returen Loss: | 60db |
| Material: | Plastic +ceramics | Operating Temperature: | -40+80 |
| Connector Type: | FC/SC | Sleeve: | Ceramic |
| Metiral: | Metal | Color: | Blue /Beige /Green |
| Type: | Single Mode/ Multi-mode | ||
| Highlight: | bare fiber adapter,single mode to multimode fiber adapter |
||
Product Description

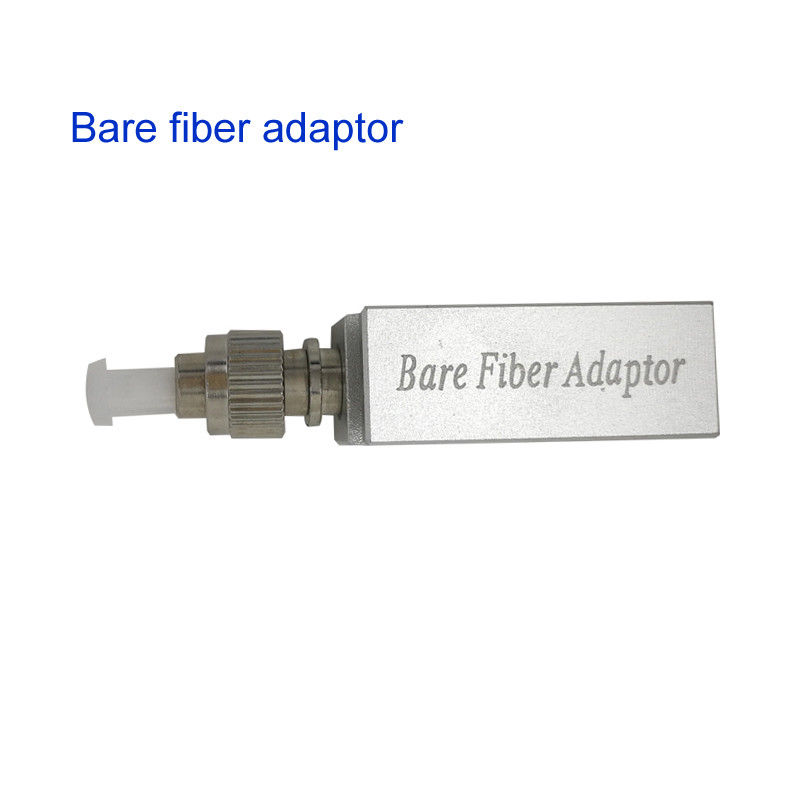

Fiber Flange Fiber Square Type FC Bare Fiber Adaptor FC Bare Fiber Adapter
Product Description
An adapter is a mechanical device designed to align fiber-optic connectors. It contains the interconnect sleeve, that holds the two ferrules together.
Bare fiber optical adaptor are used as the medium to link the bare optical fiber to fiber optic equipment.
Features:
Fits accordingly FC, SC, ST ,LC adapters
Lightest weight and very compact size
Specially designed mechanism minimizes insertion loss
Highest repeatability
User friendly -- easy to insert, remove and reload fiber
Specifications:
FC bare fiber adapter RoHS
1.IL<=0.2dB,RL>=50dB
2.Durability>1000
3.Easily insert,remove/reload fiber
4.High repeatabilit
| Parameter | Unit | Bare fiber adapter |
| Insertion Loss Typical | dB | ≤0.2 |
| Return Loss | dB | ≥50 |
| Exchangeability | dB | ≤0.2 |
| Repeatability | dB | ≤0.2 |
| Durability | Times | >1000 |
| Operating Temperature | °C | -40~80 |
| Storage Temperature | °C | -45~85 |
Applications:
WANs, LANs, CATV
Testing equipment
Communication system
Telecommunication networks
Temporarily connect bare fiber
Pictures
1.Low insertion loss
The fibers are connected by an adapter through an internal open sleeve. We offer adapters in a variety of shapes and performances to ensure the connection between the fiber jumpers.
2.Good repeatability
Widely used in optical fiber distribution frame (ODF), fiber optic instrument table, fiber optic LAN, etc.
3.Good isolation
The signal field is electrically isolated from the main control terminal to prevent accidental loss of the main control terminal
Our advantages:
1.Good reply: Your inquiry related to our products or price will be replied within 24 hours.
2.OEM&ODM: We can help you to design or put your logo and company name into products.
3.Remote Technical support&Full Technical Document
4.Warranty: 1 year warranty( While the warranty is not responsible for those broken by violence or updated with other brands.)
5.English software, English Indicator
6.Professional, Very competitive price
7.Large Stock, Fast Delivery
8.Quality Assurance
