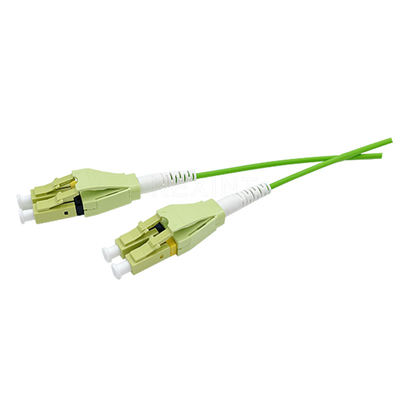

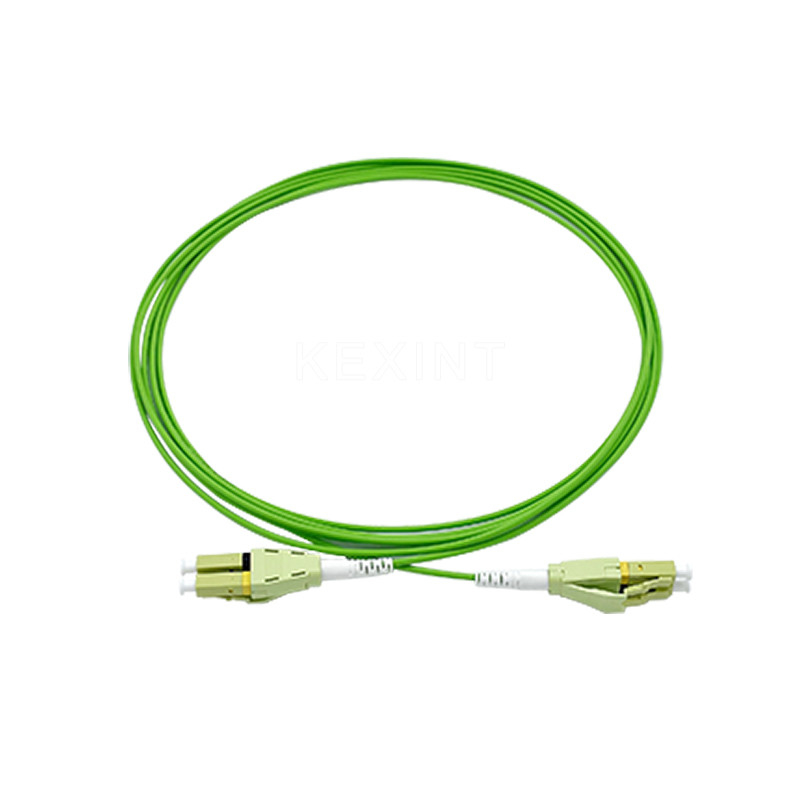

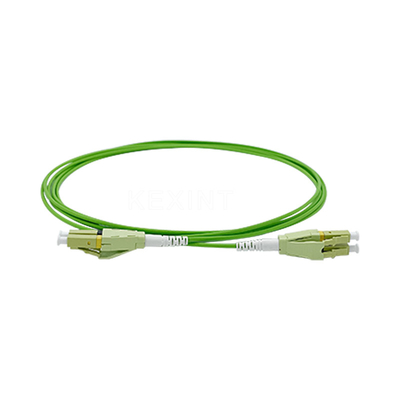

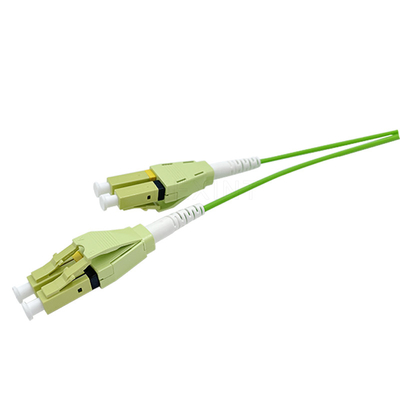

Kexint Ftth Multimode Fiber Optical Uniboot Patch Cord Om5 2.0Mm Lc Dulplex 3m

Kexint Ftth Multimode Fiber Optical Uniboot Patch Cord Om5 2.0Mm Lc Dulplex 3m

Product Details:

Place of Origin: Guangdong, China
Brand Name: KEXINT
Model Number: LC Uniboot OM5

Payment & Shipping Terms:

Minimum Order Quantity: 10 Pieces
Price: USD 1.36-1.57/piece

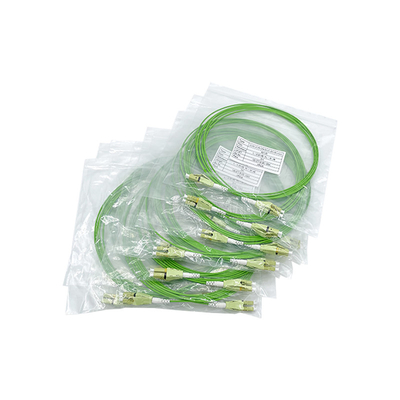

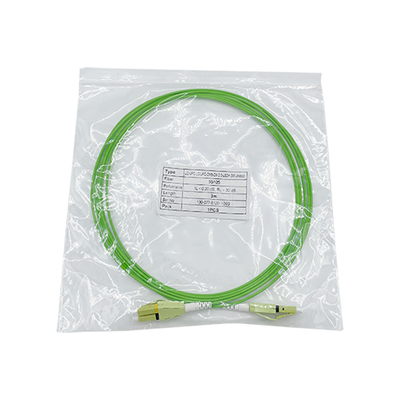

Packaging Details: 1 piece/polybag
Delivery Time: 7 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000 pieces per week
Get Best Price Contact Now

Detail Information

Fiber Type: MM-OM5 Color: Green
Connector Type: LC Uniboot Insertion Loss: Low Loss PC<0.2dB
Reture Loss: PC>30dB Length: 3m
External Diameter: 2.0 Mm Connector Capacity: 2 Cores
Operation Temperature: -40℃~+80℃ Fiber Count: 1x2
High Light:

Om5 Uniboot Patch Cord

,

2.0Mm Uniboot Patch Cord

,

3m Fiber Optical Patch Cord

Product Description

PRODUCT DESCRIPTION


KEXINT FTTH MULTI MODE OM5 2.0 MM LC DULPLEX 3M FIBER OPTICAL UNIBOOT PATCH CORD DATA CENTER



     LC uniboot fiber optic patch cords are constructed for duplex transmission within a single 2.4mm or 3.0mm cable with two fibers in one physical cable with a design that reduces the occupied space on a patch panel by 50% when it connects two optical ports, having to position only one fiber instead of two fibers.

                       Kexint Ftth Multimode Fiber Optical Uniboot Patch Cord Om5 2.0Mm Lc Dulplex 3m 0

LC uniboot cables are constructed for duplex transmission within a single 2.4mm or 3.0mm cable with two fibers in one physical cable with a design that reduces the occupied space on a patch panel by 50% when it connects two optical ports, having to position only one fiber instead of two fibers. So the space requirement of cabling can be significantly reduced by LC uniboot fiber patch cables.



           Kexint Ftth Multimode Fiber Optical Uniboot Patch Cord Om5 2.0Mm Lc Dulplex 3m 1

The major advantage is given by the flexibility construction of the end LC connectors. Their design, easily permit to switch the polarity of the fibers only by maneuvering the connectors without the need of a special tool. LC uniboot fiber patch cables with push-plug tap are now available at KEXINT. This little change can make easier finger access and a quicker latch release available, and it can also help to connect or disconnect a single fiber patch cable without affecting other surrounding links.


THE SPECIFICATION OF PRODUCT




THE STRUCTURE OF CONNECTOR

Kexint Ftth Multimode Fiber Optical Uniboot Patch Cord Om5 2.0Mm Lc Dulplex 3m 2

Applications


• Data Centers
• Local Area Networks
• High-Density Applications
• Interconnects
• Cross-connects

Features


• Uniboot with a Single Housing
• Easy to Assemble and Use
• Low Insertion Loss and Back Reflection
• High Repeatability and Reliability
• Telcordia GR-326 Qualified




THE SPECIFICATION OF THE PRODUCT



 Item Contents Unit Value
Optical Fiber / / 2
Sub-unit Strength member / Each subunit 930*3 Kevlar
Jacket color / Green
Jacket material / LSZH
Number / 1
Diameter (mm) mm 2.0±0.1
Sub-unit identification / 1#
Outer jacket Diameter mm 2.0±0.2
Material / LSZH
Color / Green
Jacket thickness mm 0.2±0.1
Tensile performance Short term N 250(fiber strain≤0.6%)
Long term N 120
Crush Short term N/100mm 1000
Long term N/100mm 500
Cable attenuation dB/km ≦ 1.5 at 1300nm, ≦ 3.5 at 850nm
Cable weight (Approx.) kg/km 35




WORKSHOP


Kexint Ftth Multimode Fiber Optical Uniboot Patch Cord Om5 2.0Mm Lc Dulplex 3m 3


APPLICATION


Kexint Ftth Multimode Fiber Optical Uniboot Patch Cord Om5 2.0Mm Lc Dulplex 3m 4

Kexint Ftth Multimode Fiber Optical Uniboot Patch Cord Om5 2.0Mm Lc Dulplex 3m 5


PACKAGE & DELIVERY


Kexint Ftth Multimode Fiber Optical Uniboot Patch Cord Om5 2.0Mm Lc Dulplex 3m 6 Kexint Ftth Multimode Fiber Optical Uniboot Patch Cord Om5 2.0Mm Lc Dulplex 3m 7




COMPANY PROFILE




Kexint Ftth Multimode Fiber Optical Uniboot Patch Cord Om5 2.0Mm Lc Dulplex 3m 8

Kexint Ftth Multimode Fiber Optical Uniboot Patch Cord Om5 2.0Mm Lc Dulplex 3m 9

Kexint Ftth Multimode Fiber Optical Uniboot Patch Cord Om5 2.0Mm Lc Dulplex 3m 10

Kexint Ftth Multimode Fiber Optical Uniboot Patch Cord Om5 2.0Mm Lc Dulplex 3m 11

Kexint Ftth Multimode Fiber Optical Uniboot Patch Cord Om5 2.0Mm Lc Dulplex 3m 12

Kexint Ftth Multimode Fiber Optical Uniboot Patch Cord Om5 2.0Mm Lc Dulplex 3m 13

Kexint Ftth Multimode Fiber Optical Uniboot Patch Cord Om5 2.0Mm Lc Dulplex 3m 14



FAQ


Q1: Are you trading company or manufacturer?

A1: We are manufacturer with own factories.



Q2: Do you provide samples? Is it free or extra?

A2: Yes, we could offer the sample for free charge but do not pay the cost of freight.



Q3: What is your terms of payment?

A3: Payment≤1000 USD,100% in advance;payment>1000USD, 30% T/Tin advance,balance before shipment.



Q4: How long is your delivery time?

A4: Generally it is 5-10 days if the goods are in stock.Otherwise,it is 15-20 days if the goods are not in stock.It's according to the quantity of needs.



Q5: Can I negotiate the prices?

A5: Yes, we may consider diascounts for multiple container load of goods.



Q6: What is your terms of packing?

A6: Generally, we pack our goods in neutral white boxes and brown cartons.If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.



Q7: How much will the shipping charges be?

A7: It depends on the size of your shipment and the method of shipping.We will offer the charge to you as you requested.



Q8: Can you produce according to the samples?

A8: Yes, we can produce by your samples or technical drawings and build the molds and fixtures.



Q9: How about the warranty?

A9: There are 12 months for the warranty.While the warranty is not responsible for those broken by violence or uopdated with other brands.



Q10: What is your terms of delivery?

A10: EXW,FOB,CFR,CIF,DDU,DDP.



Q11: Can I visit you?

A11: Sure, one of our factories is in Shenzhen,China.Please contact us to make an appointment.
