CATV Network Optical WDM FBT 10/90 1×2 Coupler Fused Tapered Splitter Bundles

CATV Network Optical WDM FBT 10/90 1×2 Coupler Fused Tapered Splitter Bundles

Product Details:

Place of Origin: SHENZHEN
Brand Name: KEXINT
Certification: ISO9001-2015
Model Number: KXT-FBT-1*2-SC/UPC

Payment & Shipping Terms:

Minimum Order Quantity: 10
Price: $+1.49+PCS
Packaging Details: 20*10*2
Delivery Time: 8
Payment Terms: T/T, D/A, D/P, L/C, Western Union, MoneyGram
Supply Ability: 500+pcs+1day
Get Best Price Contact Now

Detail Information

Splitter Ratio: 10/90 Connector: SC/UPC CONNECTORS
Parameters: 1*2 Wavelength: 1310 /1490/1550
Package: Steel Tube Product Name: FBT 1*2 0.9 Mini
Directivity: 18dB Package (exclude Boots): 90*20*10 Mm
High Light:

fiber optic splitter

,

wdm components

Product Description

CATV Network Optical WDM FBT 10/90 1×2 Coupler Fused Tapered Splitter Bundles

FBT 1×2 10/90 Coupler Fiber Optical WDM Mini 0.9 SC/UPC Non-uniform Optical Power

       Our company can only pull 1 × 4 or less at a time using the parallel taper process. For 1 × 4 or more devices, multiple 1 × 2 devices are connected together. The whole is packaged in a splitter box.

       Fused tapered optical splitter bundles two or more optical fibers together, then melts and stretches them on a tapered machine, and monitors the change of the splitting ratio in real time. After the splitting ratio reaches the requirements, it ends the melting and stretching. The other fiber is used as the input end, and the other end is used as the multiple output end.



Applications:



Fiber optic communication system
FTTX access network based on PON structure
Local loop and passive optical network (PON)
CATV network
LAN, WAN and MAN
Testing equipments



Features:



Broad Operating Band

High Channel Isolation

Low Insertion Loss

High Reliability and Stability



Specifications:



Dual Window Coupler Test Report

S/N: 1507220001
TESTING ENVIRONMENT: Temperature: 23℃±2℃. Relative Humidity:60%±10%
TYPE FBT-1x2-SM-10/90-1310/1490/1550-1m-0.9-NC/NC
Test Wavelength nm 1270~1350&1510~1590
OutPut   1310nm 1550nm
Out1 Out2 Out1 Out2
Insertion Loss dB 10.72 0.71 10.77 0.70
Coupling Ratio % 9.07% 90.93% 8.94% 91.06%
PDL dB ≤0.15
Directional dB ≥55
Operating Temperature -20~+75
Storage Temperature -40~+85
fiber Length m 1
Dimension mm Ф3.0×54
Fiber Type   Corning SMF-28e,9/125,900um
Connector   NONE

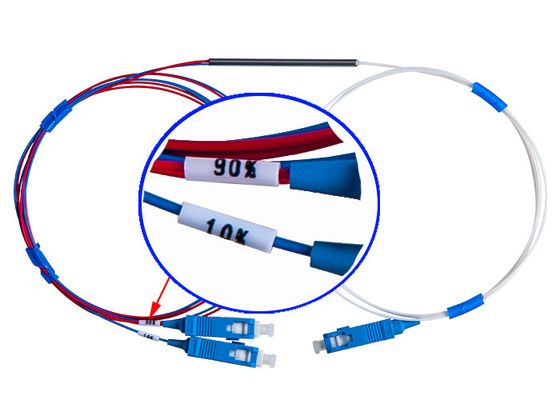

CATV Network Optical WDM FBT 10/90 1×2 Coupler Fused Tapered Splitter Bundles 0

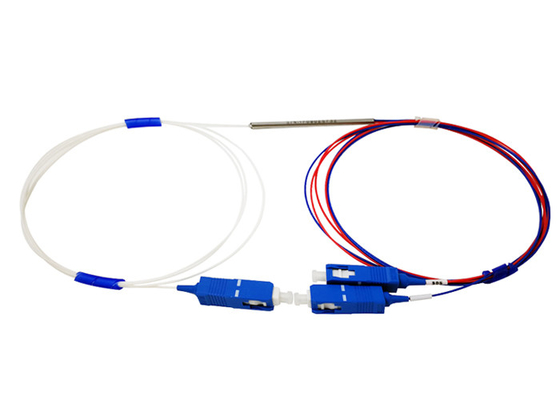

CATV Network Optical WDM FBT 10/90 1×2 Coupler Fused Tapered Splitter Bundles 1

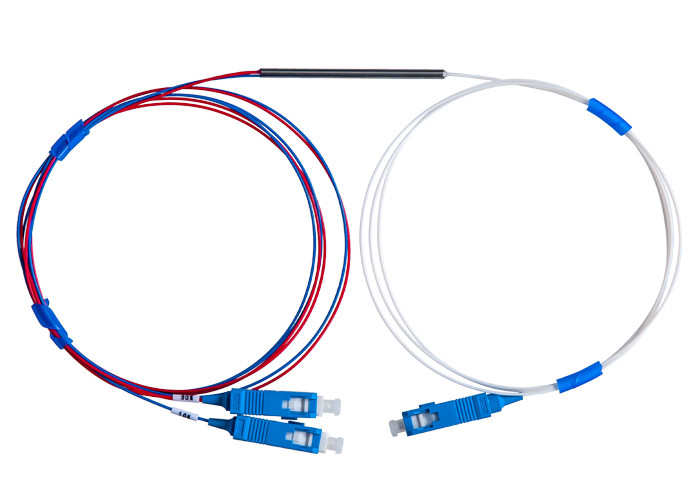

CATV Network Optical WDM FBT 10/90 1×2 Coupler Fused Tapered Splitter Bundles 2
