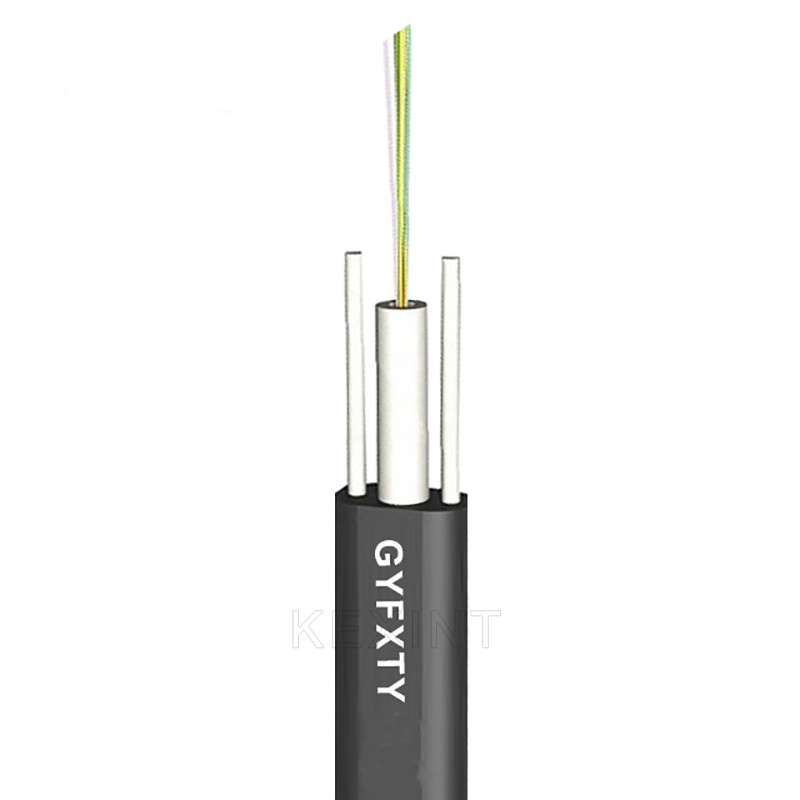

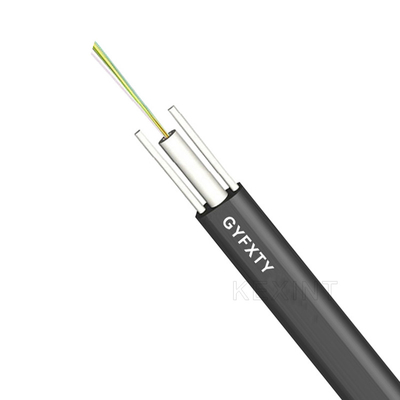

Fiber Optic Non Armored Cable Outdoor GYFXTY 2-24 Cores Black Center Beam Loose Tube

Fiber Optic Non Armored Cable Outdoor GYFXTY 2-24 Cores Black Center Beam Loose Tube

Product Details:

Place of Origin: Guangdong，China
Brand Name: KEXINT
Certification: CE/ROHS/ISO9001
Model Number: GYFXTY

Payment & Shipping Terms:

Minimum Order Quantity: 3000 meters
Price: 3000 -49999 meters $0.13 ; 50000 - 99999 meters $0.12 ; >= 100000 meters $0.11

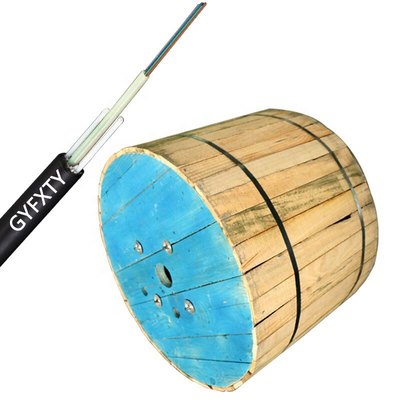

Packaging Details: Wooden Drum
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000000 meters per Week
Get Best Price Contact Now

Detail Information
Number Of Conductors: 6 Max Tensile (Long Term): 700N
Max Tensile (Short Term): 1200 N Crush(Long Term): 600 N/10 Cm
Crush(Short Term): 1200 N/10 Cm Min. Bend Radius(Dynamic): 20D Mm
Min. Bend Radius(Static): 10D Mm Weight: 35 ±5 Kg/km
Operating Temperature: -40~+70 ℃ Package: Wooden Drum
High Light:

GYFXTY Non Armored Cable

,

LZSH Out Sheath Fiber Optic Cable

Product Description

KEXINT FTTH GYFXTY 2 4 6 8 12 24 Fibers Outdoor Center Beam Type Fiber Optic

Fiber Optic Non Armored Cable Outdoor GYFXTY 2-24 Cores Black Center Beam Loose Tube 0

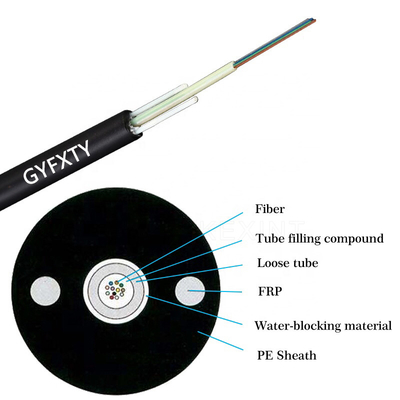

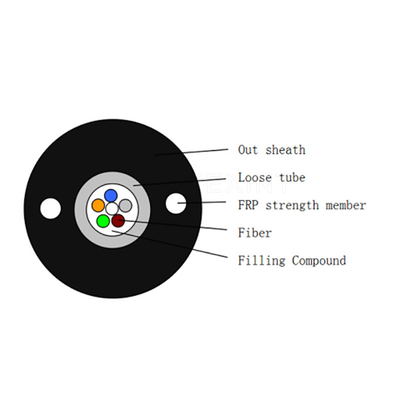

Primary coating of optical fiber for central loose casing protection. 250μm single-mode fiber is located in the loose sleeve made of PBT plastic. The gap in the loose sleeve tube is filled with a contact paste compound and located in the center of the whole cable. The fiber is concentrated in the center of the cable. Reinforcement distributed on both sides of the cable sheath. Multiple metal stiffeners and yarns are wound around the center tube with appropriate pitch, and a waterproof material is applied at the same time. Polyethylene sheath or other materials such as low smoke halogen-free polyolefin are tightly coated around the reinforcement.



Items
Specifications
Fiber Count
6
The Inner Structure of Cable
Central tube building


Loose Tube
Outer Diameter
2.0 mm±0.05 mm
Material
PBT
Tube Count
1
Fibers Per Tube
6

Parellel 2 FRP

Outer Diameter
1.0 mm x2
Material
PE

Outer
Sheath
Outer Diameter
6.0 ±0.1 mm
Material
PE
Color
Black



Fiber Optic Non Armored Cable Outdoor GYFXTY 2-24 Cores Black Center Beam Loose Tube 1

Product Features:
1.Non-metal strength member
2.Filler protect loose tuber fiber
3.Optical cable sheath material (PE) has good anti-ultraviolet radiation performance and environmental stress cracking resistance.

4.The waterproof performance of optical cable is ensured by using waterproof material to prevent the longitudinal seepage of optical cable.
5.Optical fiber has large transmission capacity, less loss, long transmission distance, small size, light weight, low dispersion and easy laying.
6.Two parallel wires ensure the tensile strength of the cable, and the suitable temperature of the cable is -40 to +70 ℃

Items
Unit
Parameters
G.652D

Mode Field Diameter
1310 nm
μm
9.2±0.4
1550 nm
μm
10.4±0.5
Cladding Diameter
μm
124.8±0.7
Cladding Non-Circularity
%
≤0.7
Core-Cladding Concentricity Error
μm
≤0.5
Coating Diameter
μm
245±5
Coating Non-Circularity
%
≤6.0
Cladding-Coating Concentricity Error
μm
≤12.0
Cable Cutoff Wavelength
nm
λcc≤1260
Attenuation
(max.)
1310 nm
dB/km
≤0.36
1550 nm
dB/km
≤0.22
