1U 24 Ports SC ODF Optical Rack Fiber Patch Panel 19 Inch Pull-out Type

1U 24 Ports SC ODF Optical Rack Fiber Patch Panel 19 Inch Pull-out Type

    • 1U 24 Ports SC ODF Optical Rack Fiber Patch Panel 19 Inch Pull-out Type
    • 1U 24 Ports SC ODF Optical Rack Fiber Patch Panel 19 Inch Pull-out Type
    • 1U 24 Ports SC ODF Optical Rack Fiber Patch Panel 19 Inch Pull-out Type
  • 1U 24 Ports SC ODF Optical Rack Fiber Patch Panel 19 Inch Pull-out Type

    Product Details:

    Place of Origin: SHENZHEN
    Brand Name: KEXINT
    Certification: ISO-9001-2015
    Model Number: KXT-U-03 01

    Payment & Shipping Terms:

    Minimum Order Quantity: 10
    Price: $+15.15+PCS
    Packaging Details: Outer box:530*290*295/5pcs ;Inner box:525*285*290/pcs
    Delivery Time: 7
    Payment Terms: T/T, D/A, D/P, Western Union, MoneyGram, L/C
    Supply Ability: 500+PCS+7Day
    Contact Now
    Detailed Product Description
    Number Of Ports: 12 Or 24 Ports Rack Mount: Drawer Type
    Color: Black Application: FTTH FTTB FTTX Network Computer Room
    Material: Iron Track: Yes
    Max Capacity: 48 CORE LC Optical Splitting Function: Splitting Or Fiber Fusion

    1U 24 Ports SC ODF Optical Rack Fiber Patch Panel 19 Inch Pull-out Type

            Optical fiber distribution frame (ODF) is used for the formation and distribution of the backbone backbone optical cable in the optical fiber communication system, which can easily realize the connection, distribution and scheduling of optical fiber lines. With the increasing degree of network integration, there has been an optical-digital hybrid patch panel that integrates ODF, DDF, and power distribution units. It is suitable for small-to-medium-sized distribution of fiber-to-the-cell, fiber-to-the-building, remote modules and wireless base stations. Line system.

    Application:
         The product can be used on the terminal of the optical cables, different types and structures, the diameter of which are within 18mm(
    f) tray.



    Product use:
    To protect the function of the fiber core and fiber play.The optical fiber distribution frame can be installed separately, which can be individually assembled into an optical fiber distribution frame, and also can be arranged in a cabinet / shelf with the digital distribution unit and the audio distribution unit. Constitute a comprehensive distribution frame. The device has the advantages of flexible configuration, easy installation and use, easy maintenance and easy management. It is an indispensable device for fiber optic communication, optical fiber network terminals, or relay points to realize fiber splicing, fiber hopping, optical fiber cable splicing and access.


    Quantity:1 PCS / lot and 19.5KG/5pcs

    Condition: Brand New ROHS
    - 100% brand New and Good Quality.
    - 100% good package and fast delivery.
    - 100% quality assurance Factory direct supply.
    Material:1.2 mm cold rolled steel sheet
    Size: 482*250*1U 19 inch standard frame type fiber optic terminal box, telecom grade

    Product name Fiber Patch Panel Connector SC/FC/LC
    Product Model 24 SC Packing Size 482*250*1U
    Ports 24 Product Height 44.5
    Max Capacity SC 24/ LC 48 Material Cold rolled plate
    Installation Type 19 inch frame G. weight 3.9kg

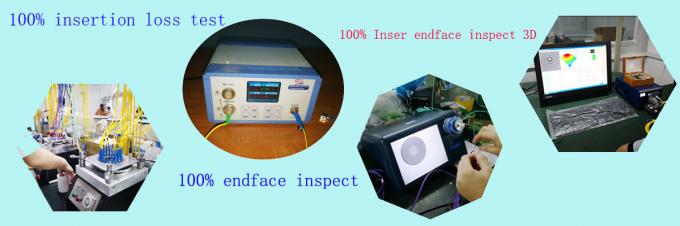

    8.Quality Assurance1U 24 Ports SC ODF Optical Rack Fiber Patch Panel 19 Inch Pull-out Type
    1U 24 Ports SC ODF Optical Rack Fiber Patch Panel 19 Inch Pull-out Type

    Our advantages:
    1.Good reply: Your inquiry related to our products or price will be replied within 24 hours.

    2.OEM&ODM: We can help you to design or put your logo and company name into products.

    3.Remote Technical support&Full Technical Document

    4.Warranty: 1 year warranty( While the warranty is not responsible for those broken by violence or updated with other brands.)

    5.English software, English Indicator

    6.Professional, Very competitive price

    7.Large Stock, Fast Delivery
