LC UPC Rack Fiber Patch Panel Box Distribution Frame Drawer Type
Product Details:
| Place of Origin: | Guangdong，China |
| Brand Name: | KEXINT |
| Certification: | CE/ROHS/ISO9001 |
| Model Number: | KXT-U-02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | 1- 99 pieces $20.67; 100 - 999 pieces $18.38; >= 1000 pieces $16.14 |
| Packaging Details: | Inner Carton+Outer Carton |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100000 Piece/Pieces per Week |
|
Detail Information |
|||
| Color: | Gray/Black | Description: | Drawer Type |
|---|---|---|---|
| Material: | Cold Rolled Steel Plate | Capacity: | 12-144 Ports |
| Optic Cable Ports: | 4-20mm | Connector Type: | SC APC LC UPC |
| Fiber Type: | SM MM | Size: | 482*250*1U |
| Insertion Loss: | 17.2 DB | Wavelength: | 1260-1650nm |
| High Light: | LC UPC Rack Fiber Patch Panel,Drawer Type Rack Fiber Patch Panel,ROHS Network Patch Panel Box |
||
Product Description

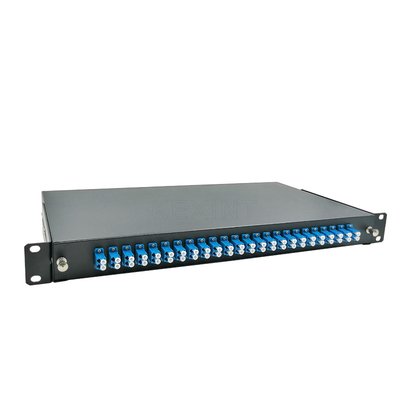

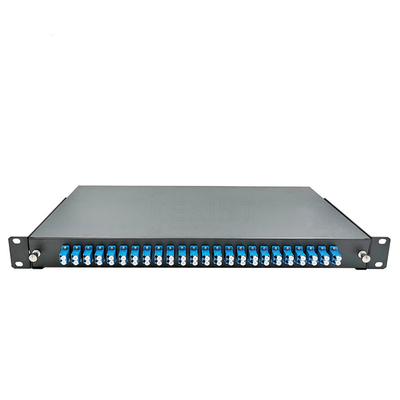

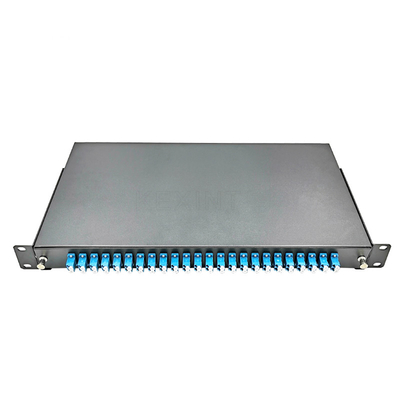

LC UPC Rack Fiber Patch Panel Box Distribution Frame Drawer Type
Fiber Optic Patch Panel KEXINT KXT-U-02 24--144 Ports LC/ UPC Duplex Adapter Optical Distribution Frame Drawer Type
Fiber Optic Patch Panel

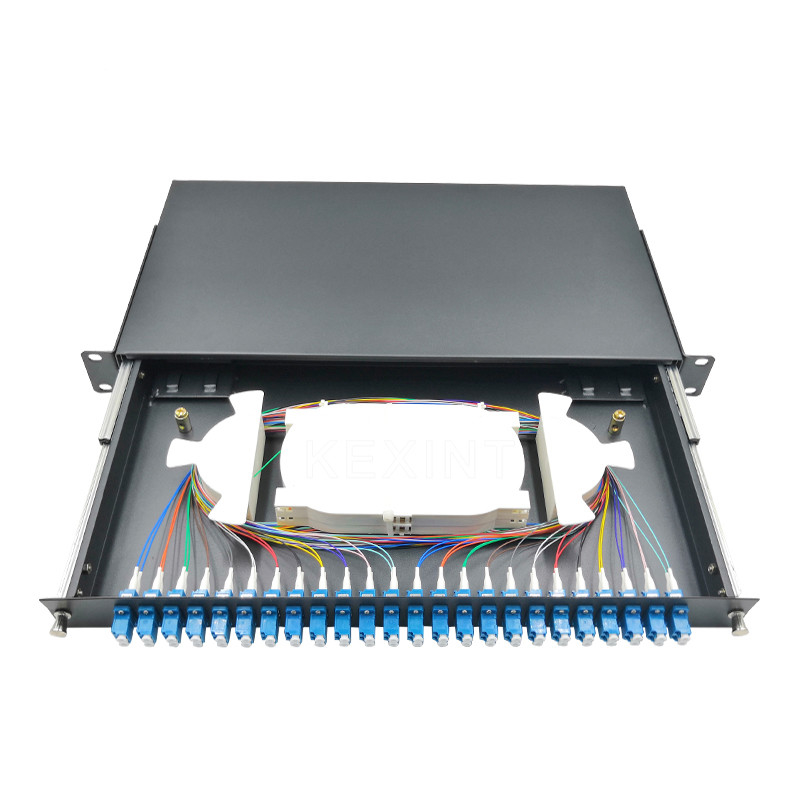

The Rack Mount Fiber Optic Patch Panel are 19" inch size and modular design. Slide-Out Rack-Mount Panel provides a simple, high-density, low profile solution for easy access and management of fiber optic terminations in a 1U-rack space design. It comes with a number of cable management devices for organizing cables entering and exiting the panel. This Patch Panel are equipped with slack-fiber storage spools, and Splicing tray. Each enclosure features front and rear removable metal covers for quick and easy installation and maintenance. The forward and backward sliding tray allows installers to access the fiber adapter panels as moves, adds and changes are required.
Features:
1.19-inch standard size, fit for 19-inch rack, 23-inch size is available on request.
2. Standard size is 1U, 2U, or 4U are available on request
3. 12,24,48,96 Port optional
4. Suitable for SC, FC, ST,LC adapter, duplex and simplex both available.
5.Smart Design to supply firm protect for optic cable terminal connection and optic fiber adapter installation
6. Provide termination, protection, connection, management of fiber optic cable
7. RoHS compliant
8. Full assembly (loaded) or empty panel optional
9. Black or White color
10.Thickness of metal is 1.2mm.and the shape is with sliding rail. easy to use
11.the terminal box is made of high-quality cold-rolled steel plate, the box surface using epoxy electrostatic spray, corrosion resistant, anti-aging
Applications:
1. Fiber Optic Transmission System
2. CATV Networks
3. Local Area Network
4. Testing/Measurement Instruments
Advantage:
1. UL certificate makes the quality lever be the best.
2. Independent research and development, Can be modified according to customer requirements
3. OEM package available, we can print your colored logo, print your OEM box, OEM Carton
Specification
parameter:
Packing & Delivery
Inner Carton+Outer Carton
