FC Fiber Optic Quick Connector Couplers 0.3dB Insertion Loss SiO2 Material

FC Fiber Optic Quick Connector Couplers 0.3dB Insertion Loss SiO2 Material

    • FC Fiber Optic Quick Connector Couplers 0.3dB Insertion Loss SiO2 Material
    • FC Fiber Optic Quick Connector Couplers 0.3dB Insertion Loss SiO2 Material
    • FC Fiber Optic Quick Connector Couplers 0.3dB Insertion Loss SiO2 Material
  • FC Fiber Optic Quick Connector Couplers 0.3dB Insertion Loss SiO2 Material

    Product Details:

    Place of Origin: SHENZHEN
    Brand Name: KEXINT
    Certification: ISO9001-2008
    Model Number: FC Fiber Optic Quick Connector

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Negotiation
    Packaging Details: carton , Inner box :18*13.5*11cm ; Outer box: 48*33*32cm
    Delivery Time: 8
    Payment Terms: T/T
    Supply Ability: 5000+pcs+1day
    Contact Now
    Detailed Product Description
    Fiber Type: Single Mode Length: 50/55/60/65 Mm
    Connector Type: FC Insertion Loss: 0.3dB
    Colour: Black Materlar: SiO2
    Diameter: 0.9mm, 2.0mm, 3.0mm, Others Tensile Resistance: 10N
    Product Name: FC Fiber Optic Quick Connector
    High Light:

    optical cable adapter

    ,

    quick connect fiber optic connectors

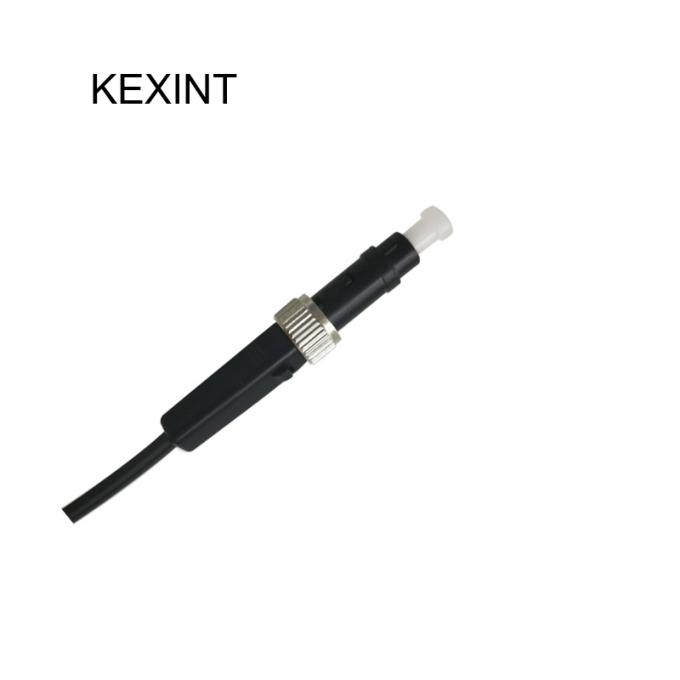

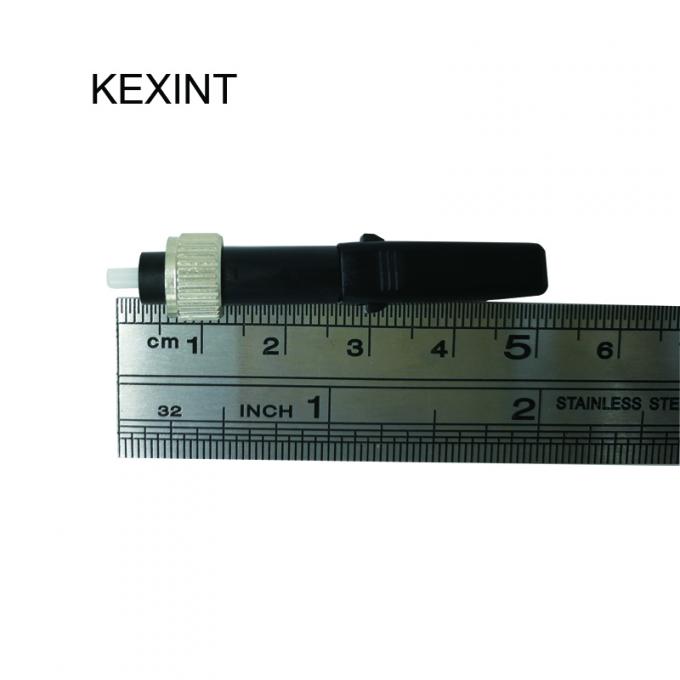

    FC Fiber Optic Quick Connector Fast Optical Fiber Connectors And Couplers

    Fast connectors, which can be easily installed in field applications, are widely used in FTTX. Comparing to other conventional methods, fast connectors with pre-polish ferrule reduce the preparation and termination time significantly. Tools required during field assembly of fast connectors are much simpler and easy operation. It is possible to improve the flexibility of optical wiring and FTTX distribution applications.

    Parameters Specifications
    Connector Type SC/LC/FC/ST
    Dimension 60mm
    Cable Diameters 0.9/2.0/3.0mm
    Fiber Mode SM/MM
    Grinding end-face UPC/APC
      UPC APC
    Insertion Loss ≤0.5dB ≤0.5dB
      UPC APC
    Return Loss ≥45dB ≥50dB
    Tension Test ≥100N
    Operating Temperature -40℃~+75℃





    Features:
    1. FTTH project usable
    2. Field installable
    3. Insert loss less than 0.3dB Max 0.5dB
    4. Metal V-shape cavity work well in high and low temperature
    5. Installation less than 1 minutes
    6. Reliable and superior optical performance
    7. Cable Tensile test complies with Telcordia GR-326-CORE
    FC Fiber Optic Quick Connector Couplers 0.3dB Insertion Loss SiO2 Material 0

    Application:
    1. FTTH project usable
    2. Field installable
    3. Insert loss less than 0.15dB
    4. Metal V-shape cavity work well in high and low temperature
    5. Installation less than 1 minutes
    6. Reliable and superior optical performance
    7. Cable Tensile test complies with Telcordia GR-326-COR

    FC Fiber Optic Quick Connector Couplers 0.3dB Insertion Loss SiO2 Material 1

    FC Fiber Optic Quick Connector Couplers 0.3dB Insertion Loss SiO2 Material 2

    FC Fiber Optic Quick Connector Couplers 0.3dB Insertion Loss SiO2 Material 3

    FC Fiber Optic Quick Connector Couplers 0.3dB Insertion Loss SiO2 Material 4FC Fiber Optic Quick Connector Couplers 0.3dB Insertion Loss SiO2 Material 5FC Fiber Optic Quick Connector Couplers 0.3dB Insertion Loss SiO2 Material 6
