Waterproof FTTH 2core Fiber Optic Distribution Box SC/LC

Waterproof FTTH 2core Fiber Optic Distribution Box SC/LC

Product Details:

Place of Origin: CHINA
Brand Name: KEXINT

Payment & Shipping Terms:

Minimum Order Quantity: 100+pcs
Price: $+5.24+pcs
Delivery Time: 8
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000+PCS+Day
Get Best Price Contact Now

Detail Information

Place Of Origin: Guangdong, China Brand Name: Spring
Color: White Waterproof Grade: IP65
Adapter: SC/LC Material: ABS+PC
Mounting Method: Wall Mounting Port: 2 Or 4
Dimension: 208x153x52mm Application: Indoor/Outdoor
Highlight:

2core Fiber Optic Distribution Box

,

FTTH Fiber Optic Distribution Box

,

SC/LC Waterproof Optical Box

Product Description

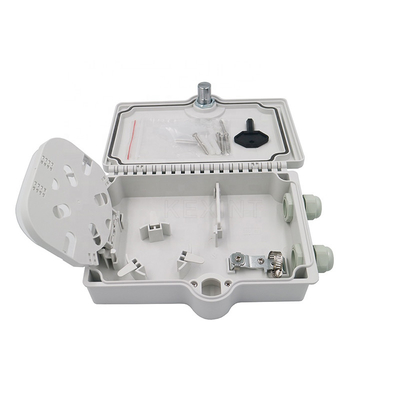

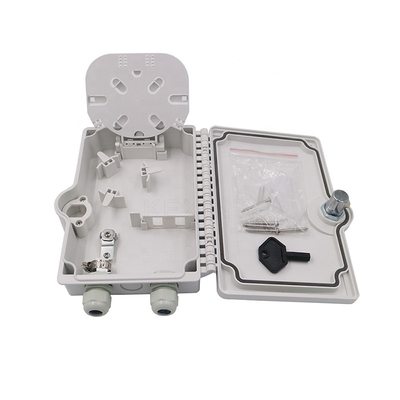

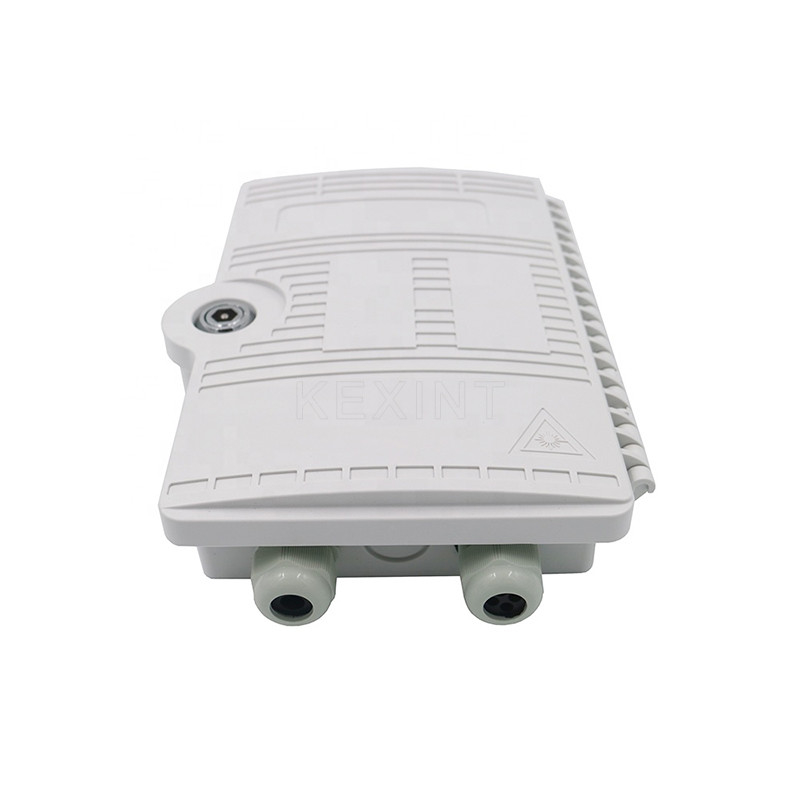

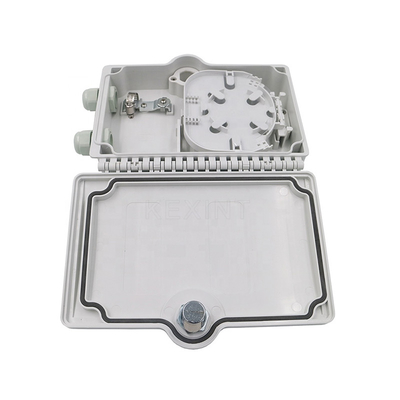

FTTH High Quality Waterproof 2 Port Fiber Optic Distribution Box

Description

SP-FTB-2F is a new generation product for fiber to the home( FTTH). The box is light and compact; it is especially for connecting and protection for fiber cable of FTTH.



Feature

  • Wall mounting;
  • Protection grade: IP65 ;
  • Design for the installation and application of LC(Deplex)/SC adapter ;
  • Design for outdoor cable or indoor drop cable;
  • Dimension :208×153×52( mm);
  • Maximum 4 cores of LC (double core) / 2 cores of SC ;

Working area

  • The telecommunication network, metropolitan area network, optical fiber communication system.

  • Optical testing equipment/instrument.

  • CATV optical fiber, optical fiber sensor.

  • Optical fiber broadband access network, FTTH optical fiber.

  • Optical fiber distribution frame, frame type and wall type optical fiber distribution unit.

Performance index

Item Technical data
Application 3.0*2.0mm drop cable or indoor cable
Fiber Diameter G652D or G657A
Tight Cladding diameter 250um & 900um
Mode of application Single mode & Multimode
Tensile strength >50N
End-use temperature -40~85 degree
Adapter SC Simplex or LC Duplex
Insertion Loss less than 0.2dB (1310nm & 1550nm)
Output 1



Our advantages:



1.Good reply: Your inquiry related to our products or price will be replied within 24 hours.



2.OEM&ODM: We can help you to design or put your logo and company name into products.



3.Remote Technical support&Full Technical Document



4.Warranty: 1 year warranty( While the warranty is not responsible for those broken by violence or updated with other brands.)



5.English software, English Indicator



6.Professional, Very competitive price



7.Large Stock, Fast Delivery



8.Quality Assurance

Waterproof FTTH 2core Fiber Optic Distribution Box SC/LC 0

Waterproof FTTH 2core Fiber Optic Distribution Box SC/LC 1

Waterproof FTTH 2core Fiber Optic Distribution Box SC/LC 2

Waterproof FTTH 2core Fiber Optic Distribution Box SC/LC 3

Waterproof FTTH 2core Fiber Optic Distribution Box SC/LC 4

Waterproof FTTH 2core Fiber Optic Distribution Box SC/LC 5

Waterproof FTTH 2core Fiber Optic Distribution Box SC/LC 6

Waterproof FTTH 2core Fiber Optic Distribution Box SC/LC 7

Waterproof FTTH 2core Fiber Optic Distribution Box SC/LC 8

Q1: Are you trading company or manufacturer ?
A1: We are factory.
Q2: How long is your delivery time?
A2: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q3: Do you provide samples ? is it free or extra ?
A3: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q4: What is your terms of payment ?
A4: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q5:Can I visit you?
A5:Sure,our factory is in Shenzhen ,China.Pliease contact us to make an appointment.
Q6:Can I negotiate the prices?
A6:Yes,we may consider discounts for multiple container load of mixed goods.
Q7:How much will the shipping charges be?
A7:It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested.
Q8. Can you produce according to the samples?
A8: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q9. What is your terms of packing?
A9: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q10. What is your terms of delivery?
A10: EXW, FOB, CFR, CIF, DDP.
Q11.How about the Warranty?
A11: There are 12 months for the warranty. While the warranty is not responsible for those broken by violence or updated with other brands.
