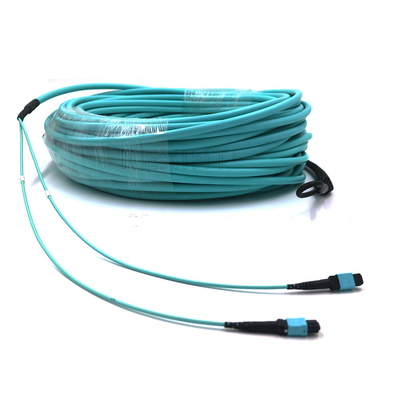

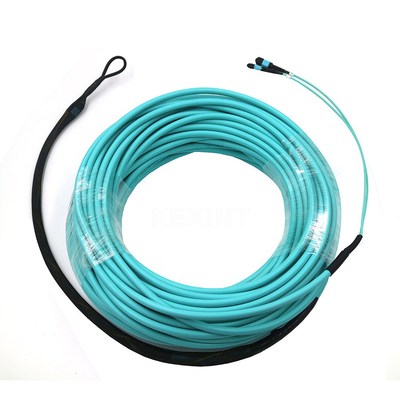

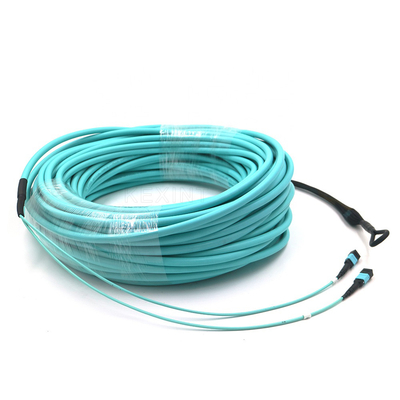

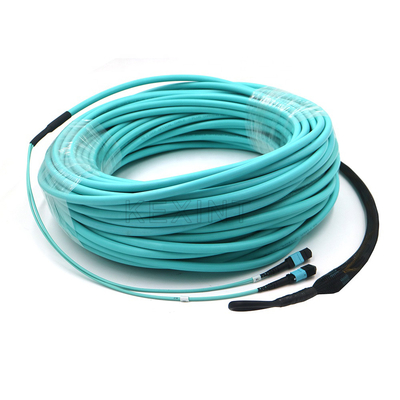

FTTH MPO To MPO Fiber Cable Customized Length With Pulling Eye
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | KEXINT |
| Certification: | ISO- 9001 2015 |
| Model Number: | KXT- OM3 LC/UPC Duplex, KXT- OM3 LC/UPC Duplex |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pieces |
|---|---|
| Price: | USD 16.14-USD18.92 |
| Packaging Details: | Inner Carton+Outer Carton |
| Delivery Time: | 10-15 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000 Piece/Pieces per Week |
|
Detail Information |
|||
| Connector Type: | PC/UPC/APC,SC/FC/LC/ST/MU/DIN/D4/MTRJ/MPO,SC-SC LC-LC FC-FC ST-ST Or Hybrid | Length: | 1m 2m 3m Or Customized |
|---|---|---|---|
| Insertion Loss: | ≤0.70dB(0.40dB Typ.) | Connector: | SC LC FC ST MU,anything |
| Material: | LSZH | Product Name: | Fiber Optic Patch Cord,Fiber Optic H Connector SC Patch Cord Compatible Corning Jumper |
| Return Loss: | ≥25dB | Color: | Aqua Or Cusomized |
| Wavelength: | 850 Nm,1310nm | ||
| High Light: | FTTH MPO To MPO Fiber Cable,Aqua MPO To MPO Fiber Cable,Pulling Eye OM3 Fiber Optic Cable |
||
Product Description
FTTH MPO To MPO Fiber Cable Customized Length With Pulling Eye
KEXINT FTTH MPO To MPO 12 24 Cores OM3 Fiber Optic Patch Cord Cable With Pulling Eye
MTP is the high dense degree of optical fiber pre-connect system, which is generally use in three areas.
-The Data Center application with high dense degree environment.
-The optical fiber to the building
-The internal connector application in fiber equipment.
MTP/MPO harness cable, also called MTP/MPO breakout cable or MTP/MPO fan-out cable, is a fiber optic cable terminated with MTP/MPO connectors on one end and MTP/MPO/LC/FC/SC/ST/MTRJ connectors (generally MTP to LC) on the other end. The main cable is usually 3.0mm LSZH Round cable, breakout 2.0mm cable. Female and Male MPO/MTP Connector is available and Male type connector has pins. All MPO/MTP Connectors we use USConec Brand. All springoptic’s MPO/MTP fiber patch cable is compliant to IEC-61754-7 and TIA-604-5(FOCIS-5) Standard. We can do both Standard type and Elite type. For the jacket cable we can do 3.0mm round cable,which also can be flat jacketed ribbon cable or bare ribbon MTP cables. We can offer Single-mode and Multimode MTP fiber optical patch cables, custom design MTP fiber optic cable assemblies, 9/125, 50/125, 62.5/125, SM, MM, Simplex Duplex, 12 core MTP/MPO patch cables, 24 core MTP/MPO patch cables, 48core MTP/MPO patch cables all is available. MTP/MPO harness cables are designed for high density applications requiring high performance and speedy installation. Harness cables provide a transition from multi-fiber cables to individual fibers or duplex connectors. The MTP/MPO harness cables are terminated with MTP/MPO connectors on one end and standard LC/FC/SC/ST/MTRJ connectors (generally MTP to LC) on the other end.
Therefore, they can meet a variety of fiber cabling requirements.
Features:
* Low insertion loss and back reflection loss
* Ferrule end surface pre-domed
* Excellent mechanical endurance
* Good in repeatability
* Good in exchange
* Green production, CE, ROHS standard
Applications:
* Telecommunications
* CATV, LAN, MAN, WAN, test and measurement
* Military industry
* Medical
Our advantages:
1.Good reply: Your inquiry related to our products or price will be replied within 24 hours.
2.OEM&ODM: We can help you to design or put your logo and company name into products.
3.Remote Technical support&Full Technical Document
4.Warranty: 1 year warranty( While the warranty is not responsible for those broken by violence or updated with other brands.)
5.English software, English Indicator
6.Professional, Very competitive price
7.Large Stock, Fast Delivery
8.Quality Assurance
* Low insertion loss and back reflection loss
* Ferrule end surface pre-domed
* Excellent mechanical endurance
* Good in repeatability
* Good in exchange
* Green production, CE, ROHS standard
Applications:
* Telecommunications
* CATV, LAN, MAN, WAN, test and measurement
* Military industry
* Medical
Our advantages:
1.Good reply: Your inquiry related to our products or price will be replied within 24 hours.
2.OEM&ODM: We can help you to design or put your logo and company name into products.
3.Remote Technical support&Full Technical Document
4.Warranty: 1 year warranty( While the warranty is not responsible for those broken by violence or updated with other brands.)
5.English software, English Indicator
6.Professional, Very competitive price
7.Large Stock, Fast Delivery
8.Quality Assurance
| Connector A | MPO Female | Connector B | MPO Female |
| Fiber Mode | MM 50/125um OM3 | Test Wavelength | 850/1300nm |
| Polish Type | PC to PC | Minimum Bend Radius | 10mm |
| Insertion Loss | ≤0.70dB(0.40dB Typ.) | Return Loss | ≥25dB |
| Attenuation at 850nm | ≤2.3dB/km | Attenuation at 1300nm | ≤0.6dB/km |
| Cable Jacket | LSZH | Cable Jacket O.D | 3.0mm |
| Installation Tensile Load | 120N | Long-Term Tensile Load | 50N |
| Operating Temperature | -40°C to +85°C | Storage Temperature | -40°C to +85°C |
