FTTH Pigtail Fiber Optic Tools Fast Connector Ferrule Jig Polishing Fixture

FTTH Pigtail Fiber Optic Tools Fast Connector Ferrule Jig Polishing Fixture

Product Details:

Place of Origin: Guangdong China
Brand Name: KEXINT
Certification: CE/ROHS/ISO9001
Model Number: SC/PC

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD 219-237 pecs
Packaging Details: Carton box
Delivery Time: 15
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500pecs perweek
Get Best Price Contact Now

Detail Information

Use: Fiber Optic SC PC Connectors Polishing Dimensions: 110*5mm
Weight: 0.5kg Material: Harden Stainless Steel
Insertion Loss: ≤0.20 DB Return Loss: ≥55 DB (PC) ≥60 DB (APC)
Highlight:

Pigtail Fiber Optic Tools

,

FTTH Fiber Optic Polishing

,

Jig Polishing Fixture

Product Description

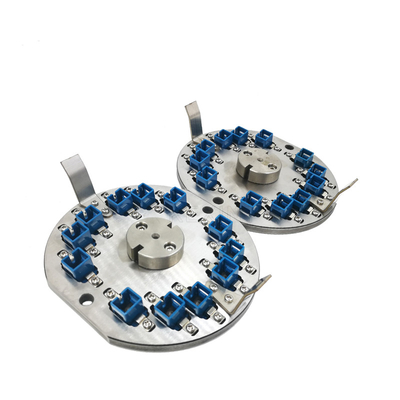

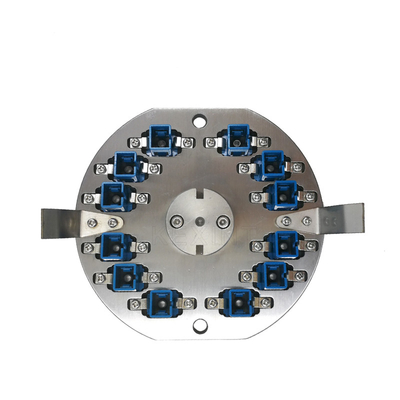

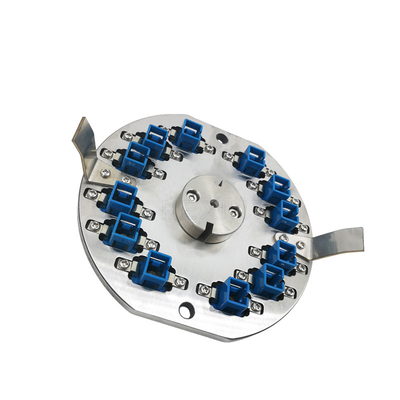

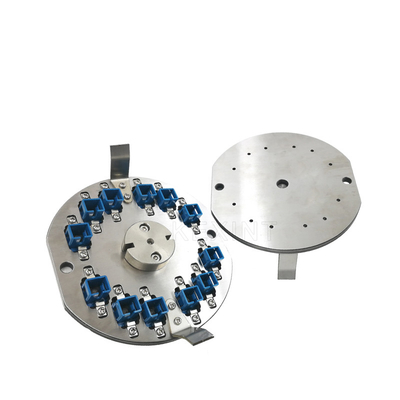

FTTH Pigtail Fiber Optic Tools Fast Connector Ferrule Jig Polishing Fixture



KEXINT FTTH SC/PC Patch Cord Pigtail Fast Connector Ferrule Fiber Optic Polishing Jig Polishing Fixture



This Fiber polishing fixture using high quality steel with heated treat, the hardened steel providing long service life. This fiber polishing fixture can be designed with the jig of SC, FC, ST, LC,and E2000, etc, and also according to the customer request.
The fiber polishing fixture pass rate with Interference> = 98% .This fiber polishing fixture is high stability and good surface quality.
Features :
1.Designed for SC/PC(UPC) connectors.
2.Easy to change jigs, simple and flexible to operate.
3.High efficiency, polishing Max 12 connectors in one cycle.The first pass yield for end face quality reach 98%~100%
4.The fiber polishing fixture is IPC Structure, Independent compression of each connector. The fiber polishing fixture pass rate
with Interference> = 98% (100% Typical, according to IEC),
5.APC return loss ≥60dB , UPC return loss ≥55dB , Insertion loss ≤0.20dB ( typical)
6.The accessories on the fixture can be replaced, Greatly extend the service life.
7.Fiber polishing fixture using high quality steel with heated treat, the hardened steel S136 providing long service life. This fiber polishing fixture can be designed with the jig of SC, FC, ST, LC, etc, and also according to the customer request.

Our advantages:
1. Good reply: Your inquiry related to our products or price will be replied within 24 hours.
2. OEM&ODM: We can help you to design or put your logo and company name into products.
3. Remote Technical support&Full Technical Document
4.Warranty: 1 year warranty( While the warranty is not responsible for those broken by violence or updated with other brands.)
5.English software, English Indicator
6. Professional, Very competitive price
7. Large Stock, Fast Delivery
Specification:
item
value
Model Number
SC/PC
Type
Fiber Optic Polishing Fixture
Place of Origin
China

Guangdong
Brand Name
KEXINT
Use
Fiber optic SC PC connectors polishing
Warranty Time
1year
Network
None
Dimensions
110*5mm
Material
harden stainless steel
Weight
0.5kg
No. of Fiber
12
3D pass rate
100%
Insertion Loss
≤0.20 dB
Return Loss
≥55 dB (PC) ≥60 dB (APC)
Certification
CE/ROHS/ISO9001
Operating temperature
-40℃~85℃
