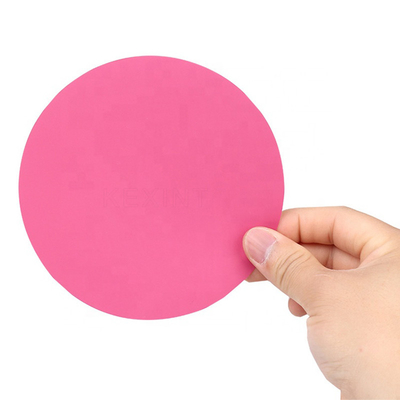

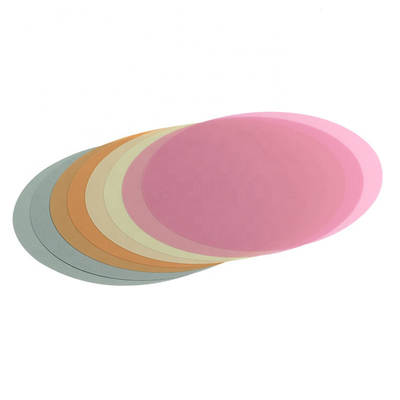

Grinding Sheet ADS Diamond Polishing Film for Lapping Optical Fiber 30um 9um 3um 1um
Product Details:
| Place of Origin: | Guangdong，China |
| Brand Name: | KEXINT |
| Certification: | CE/ROHS/ISO9001 |
| Model Number: | 1U/3U/6U/9U/30U |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 Pieces |
|---|---|
| Price: | 10 - 99 pieces $0.3; 100 - 999 pieces $0.27; >= 1000 pieces $0.24 |
| Packaging Details: | Inner Plastic Bag+Outer Carton |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100000 Piece/Pieces per Week |
|
Detail Information |
|||
| Size: | 127mm (5inch) | Color: | Blue, Green, Yellow, Lvory |
|---|---|---|---|
| Application: | Fiber Optic Patch Cord Making | Material: | Diamond |
| Article Grade: | 9 Um | Film Life: | 5-10 Times |
| Grinding: | 9 Mic | Weight: | 0.020 Kg |
| High Light: | 9um Diamond Polishing Film,30um Diamond Polishing Film,Optical Fiber Diamond Lapping Film |
||
Product Description
Descriptions:
Polishing films are polishing materials with ultra-precision flexibility. They are made with diamond powders evenly coated on the surface of a flexible substrate by adhesives and are often used for lapping and precision polishing of optical fiber pins, semiconducting materials, metal rollers, etc.
Features:
1. Evenly-sprayed particles on coated surface
2. Good intensity & flexility, suitable for polishing on different facets
3. Suitable for polishing with dry, water or oil medium 4.The fiber polishing film is a durable polishing rate compared to existing polishing films and offers economical operations
1. Evenly-sprayed particles on coated surface
2. Good intensity & flexility, suitable for polishing on different facets
3. Suitable for polishing with dry, water or oil medium 4.The fiber polishing film is a durable polishing rate compared to existing polishing films and offers economical operations
Application:

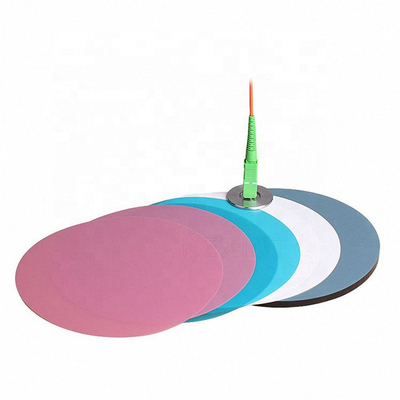

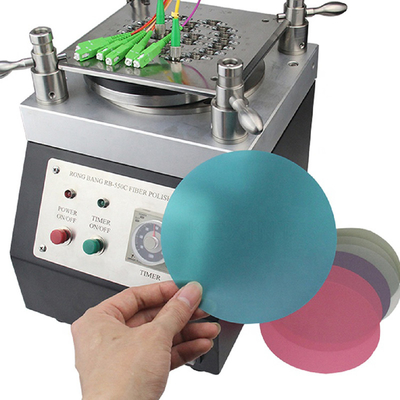

1. Cutting angle of fiber optic connector, rough grinding, medium grinding, fine grinding
2. Grinding and polishing of optical lens, crystals, LED and LCDs.
3. Polishing of Motor shafts, steering devices, Metal rollers & shafts, magnetic head, HDD, semiconducting materials, etc.
1. Cutting angle of fiber optic connector, rough grinding, medium grinding, fine grinding
2. Grinding and polishing of optical lens, crystals, LED and LCDs.
3. Polishing of Motor shafts, steering devices, Metal rollers & shafts, magnetic head, HDD, semiconducting materials, etc.
Specification
|
Product Name
|
Diamond polishing film
|
|
Grit
|
30/9/3/1/0.5/0.05 micron
|
|
Size
|
Φ127mm(5inch), Φ203mm(8inch),etc
|
|
Sheet Size
|
114mm*114mm, 152mm*152mm(6inch*6inch), 8inch*8inch, A4, etc
|
|
Thickness
|
75 micron, 3mil
|
|
Back Material
|
PET, Polyester composite film
|
|
Colour
|
White, Purple, Pink, Yellow, Blue, Green, etc
|
