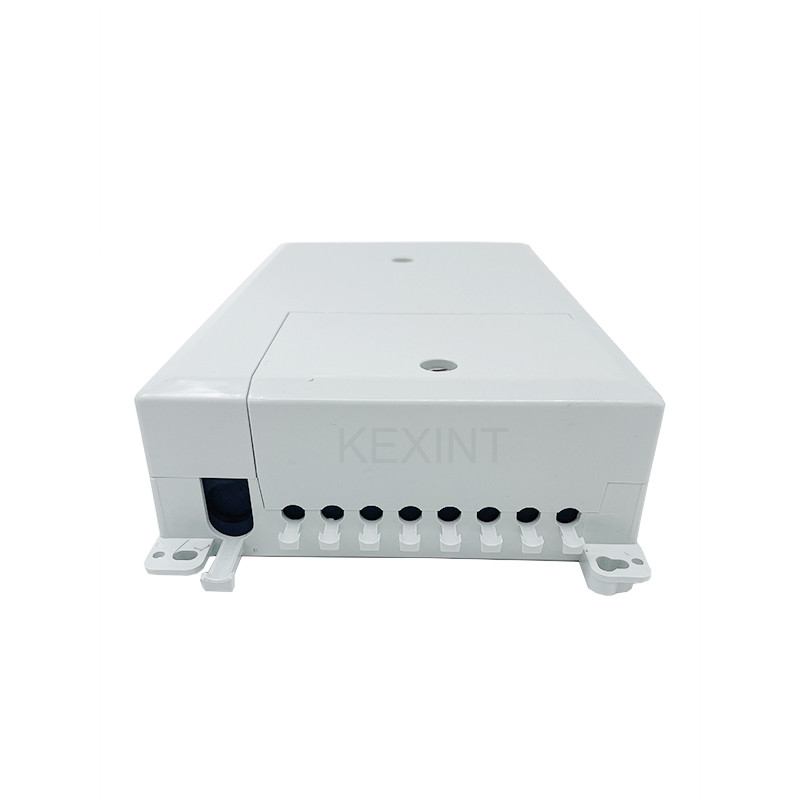

KEXINT FTTH Fiber Optic Distribution Box 8 Port IP54 Protection Level
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | KEXINT |
| Certification: | CE/ROHS/ISO9001 |
| Model Number: | KXT-A11-7 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10+PCS |
|---|---|
| Price: | dollars+3.24+pcs |
| Packaging Details: | box |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000+peace+week |
|
Detail Information |
|||
| Material: | PC+ABS | Color: | Grey |
|---|---|---|---|
| Capacity: | 8 Ports | IP Protection Level: | IP54 |
| Weight: | 480g | Size: | 23*13*5cm |
| Installation Method: | Wall Mounted | ||
| High Light: | FTTH Fiber Optic Distribution Box,Fiber Optic Distribution Box IP54,8 Port Fiber Optic Distribution Box |
||
Product Description
The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Characteristics:
1.Total enclosed structure.
2.Material: PC+ABS,wet-proof,water-proof,dust-proof,anti-aging, protection level up to IP54.
3.Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.

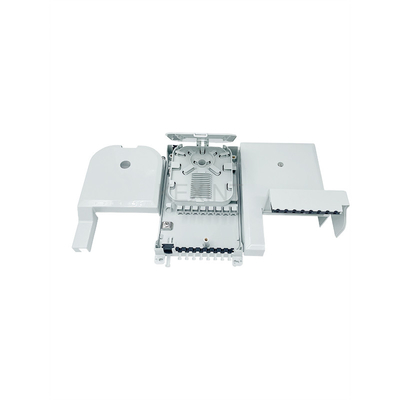

4.Cable,pigtails,patch cords are running through own path without disturbing each other, cassette type SC adaptor installation, easy maintenance.

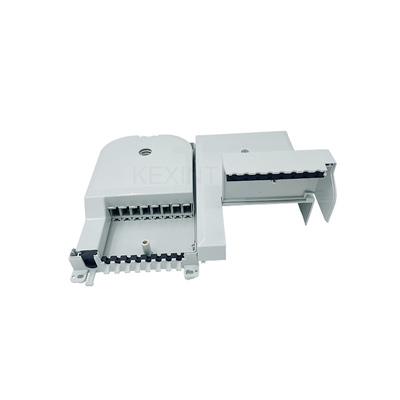

5.Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
6.Cabinet can be installed by the way of wall-mounted .
1.Install adapters
2. Strip and clean the cable, keep it 0.8~1.2m long and 30-50mm long of the strength member, and insert cable through inlet, fix it by cable clamp, and fix strength member by special clamp.
3.Put the fiber to the tray,and let the end in the splicing slot after coiling
4.Install PLC splitter in the tray,and connect pigtails with adapters,and put the pigtails in the splicing slot, splice with the
incoming cables.(it can be used splicing only)
5.close the cover, plug outgoing pigtails through sealing rubber 6.Install the box with expansion screws, finish installation
Applications:
1.Optical LAN & WAN & CATV
2.FTTH project & FTTX
3.Testing instruments
4.Optical fiber communication networks
5.PON Networks
6.Optical Signal Distribution
Our Advantages:
1.Good reply: Your inquiry related to our products or price will be replied within 24 hours.
2.OEM&ODM: We can help you to design or put your logo and company name into products.
3.Remote Technical support&Full Technical Document
4.Warranty: 1 year warranty( While the warranty is not responsible for those broken by violence or updated with other brands.)
5.English software, English Indicator
6.Professional, Very competitive price
7.Large Stock, Fast Delivery
8.Quality Assurance
