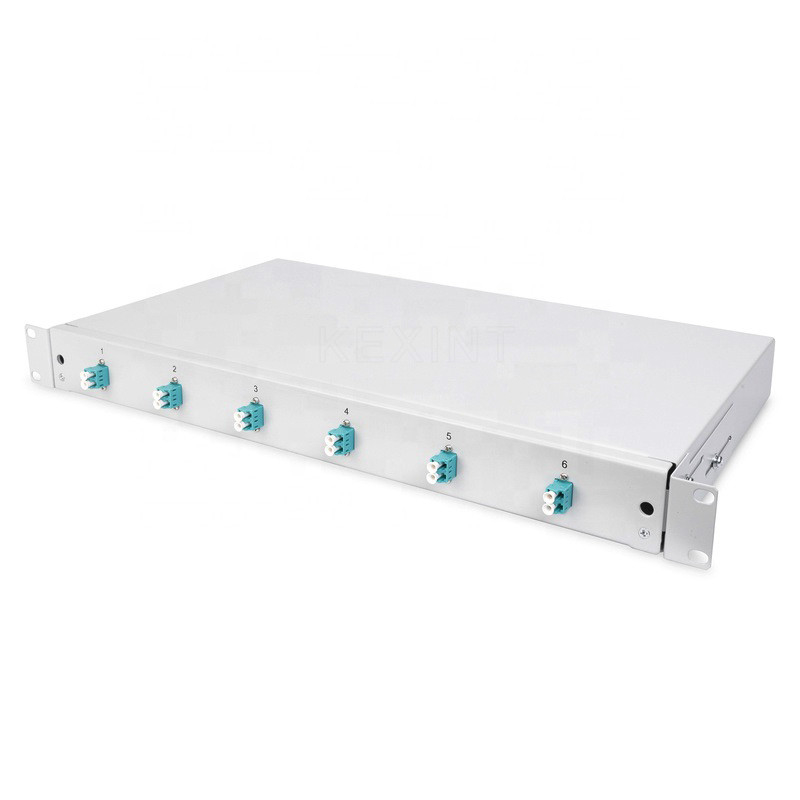

FTTH 6 To 12 Core Fiber Optic Patch Panel With 6 Simplex Or Duplex Adapters Pigtails
Product Details:
| Place of Origin: | China |
| Brand Name: | KEXINT |
| Certification: | CE/ROHS/ISO9001 |
| Model Number: | KXT-U-11 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 pieces |
|---|---|
| Price: | USD 26.32~30.75 pieces |
| Packaging Details: | CARTONS |
| Delivery Time: | 7-10 work days |
|
Detail Information |
|||
| Use: | FTTH | Capacity: | 4 Cores |
|---|---|---|---|
| Optic Cable Ports: | 4-20mm | Operating Temperature: | -40℃~85℃ |
| Network: | None | Color: | White Or Customized |
| Package: | Carton Box | Connector Type: | LC Duplex Or SC |
| Material: | Cold Rolled Steel Plate | ||
| High Light: | 12 Core Fiber Optic Patch Panel,20mm Fiber Optic Patch Panel,Fully Assembled Rack Fiber Patch Panel |
||
Product Description
Products Description
Optical fiber distribution frame (ODF) is used for the formation and distribution of the backbone backbone optical cable in the optical fiber communication system, which can easily realize the connection, distribution and scheduling of optical fiber lines.
With the increasing degree of network integration, there has been an optical-digital hybrid patch panel that integrates ODF,
DDF,and power distribution units. It is suitable for small-to-medium-sized distribution of fiber-to-the-cell,
fiber-to-the-building,remote modules and wireless base stations. Line system.
With the increasing degree of network integration, there has been an optical-digital hybrid patch panel that integrates ODF,
DDF,and power distribution units. It is suitable for small-to-medium-sized distribution of fiber-to-the-cell,
fiber-to-the-building,remote modules and wireless base stations. Line system.

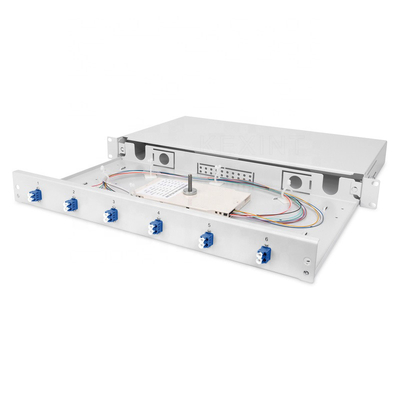

1U ODF needs Equipped
*Completely prefabricated, fiber pigtails exposed and inserted into the splice cassette(s)
* Colored pigtails
* Couplers with zirconia ceramic ferrule
* Metal box was made of 1.0 mm steel sheet, varnished
* 1 height unit (44.45 mm)
* 483mm width (19")
* 240-250mm depth
* M20/M25 screw, cassette, cassette cover and strain relief included
* Colored pigtails
* Couplers with zirconia ceramic ferrule
* Metal box was made of 1.0 mm steel sheet, varnished
* 1 height unit (44.45 mm)
* 483mm width (19")
* 240-250mm depth
* M20/M25 screw, cassette, cassette cover and strain relief included
Application:
The product can be used on the terminal of the optical cables, different types and structures, the diameter of which are within 18mm(f) tray.
Product use:
To protect the function of the fiber core and fiber play.The optical fiber distribution frame can be installed separately, which can be individually assembled into an optical fiber distribution frame, and also can be arranged in a cabinet / shelf with the digital distribution unit and the audio distribution unit. Constitute a comprehensive distribution frame. The device has the advantages of flexible configuration, easy installation and use, easy maintenance and easy management. It is an indispensable device for fiber optic communication, optical fiber network terminals, or relay points to realize fiber splicing, fiber hopping, optical fiber cable splicing and access.
Specification:
| We support fiber capacity | 6/12 cores |
| Fiber Port | FC,SC,ST and LC |
| Working temperature | -10°C-+40°C |
| Storage temperature | -25°C~+55°C |
| Relative humidity | ≤ 85%(+30°C) |
| Atmospheric pressure | 70Kpa-106Kpa |
| Nominal operating wavelength | 850nm, 1310nm,1550nm |
| Insertion loss | ≤0.5dB |
| Return loss | PC ≥40dB,UPC 2 50dB,APC 2 60dB |
| Electrical strength | 23KV(DC)1min without breakdown |
| nsulation resistance | ≥1000MQ/500V(DC) |
| Life | ≥1000 times |
| Application range | Small and medium-sized wiring system for fiber to the cell, fiber to thebuilding, remote module office and wireless base station |
| item | value |
| Model Number | KXT-U-11 |
| Type | Fiber optic patch panel |
| Connector Type | LC Duplex or SC |
| Capacity | 6-12 Core |
| Material | Cold Rolled steel Plate |
| color | White Or Customized |
| MoQ | 1Piece |
| optic cable ports | 4-20mm |
| Fiber Type | SM MM |
| Package | Carton Box |
| Certification | CEROHS/ISO9001 |
| Operating temperature | -40°C-85°C |
