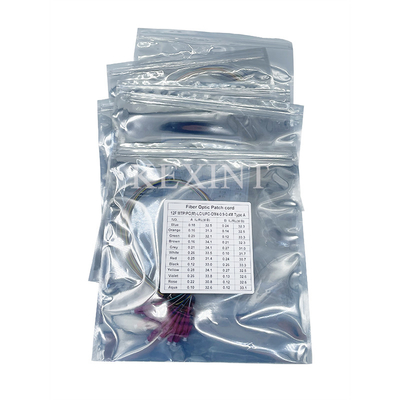

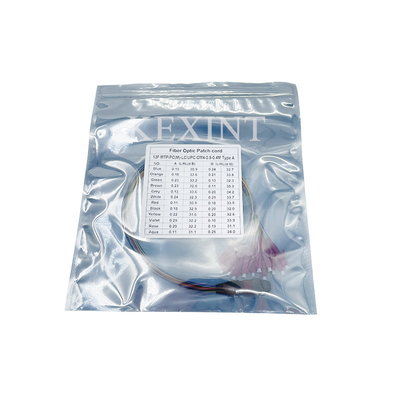

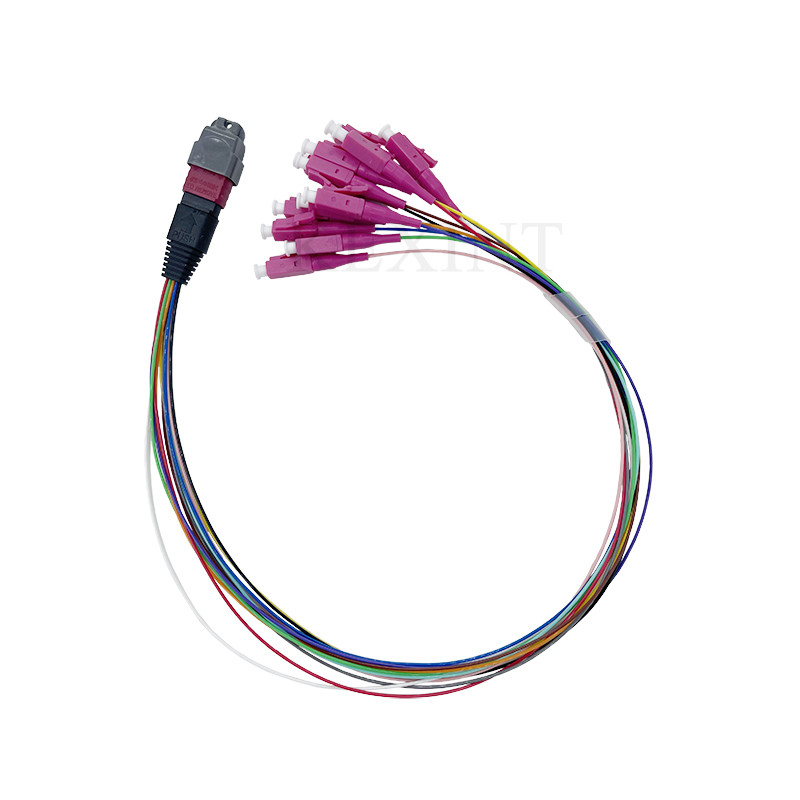

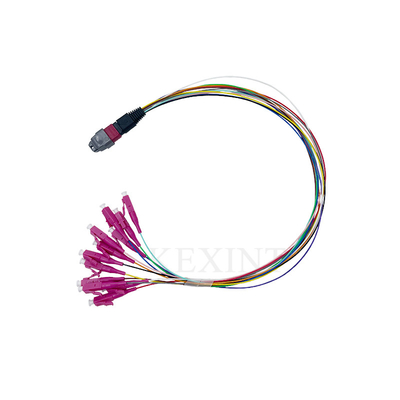

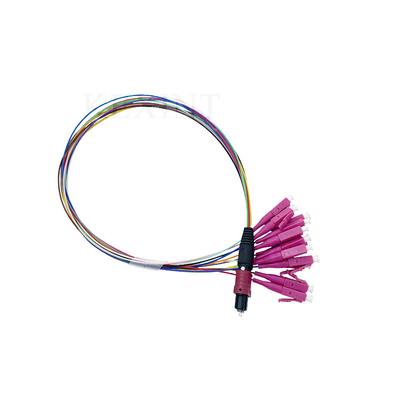

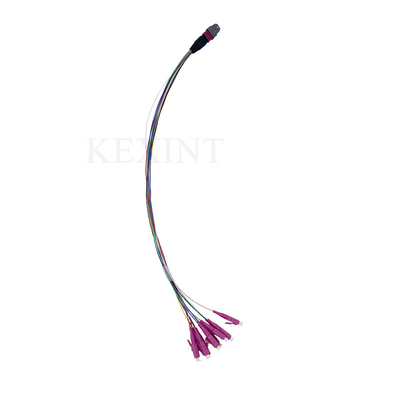

12 Cores Fiber Optic Trunk Cable Om4 Mtp/Pc Male - Lc/Upc Fanout 0.9mm 40cm
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | KEXINT |
| Certification: | CE/ROHS/ISO9001 |
| Model Number: | 12 Core OM4 MTP-LC/UPC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10+ pcs |
|---|---|
| Price: | dollars+11.86+pcs |
| Packaging Details: | carton |
| Delivery Time: | 8 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000+pcs+day |
|
Detail Information |
|||
| Fiber Color: | Magenta | Connector Type: | MTP/MPO/LC Or Customized |
|---|---|---|---|
| Cable Diameter: | 3.0mm, 2.0mm,0.9mm | Length: | 1M ,3M, 5M Or Customized |
| Jacket: | PVC, LSZH, OFNP, OFNR,HFFR | Operating Temperature: | -40℃~85℃ |
| High Light: | 12 cores fiber optic trunk cable,om4 fiber optic trunk cable,40cm fiber trunk cable |
||
Product Description
MPO/MTP ribbon and trunk mulitcore cable assemblies facilitate rapid deployment of high density backbone cabling in data centers and other high fiber environment, reducing network in stallation or reconfiguration time and cost.
MTP/MPO are used to interconnect cassettes, panels, or fan outs, it offered in fiber typs in standard 8 , 12 ,24 ,or 48 cores versions using a compact and rugged microcables structre. The compact cable optimize cableway use and improve airflow.
These MPO/MTP cable are build with the highest quality components , Low loss elite versions are offered, featuring low insertion for demanding high speed networks where power budgets are critical.
Features:
* Low insertion loss and back reflection loss
* Ferrule end surface pre-domed
* Excellent mechanical endurance
* Good in repeatability
* Good in exchange
* Green production, CE, RoHS standard
Applications:
* Telecommunications
* CATV, LAN, MAN, WAN, test and measurement
* Military industry
* Medical
Note:
When the MPO/MTP connector is designed with pins, it is called male connector. On the contrary, it is called female connector.They mate together in the same way as traditional LC, SC and ST connectors except that MPO connectors require a male connector to be connected to a female connector.
