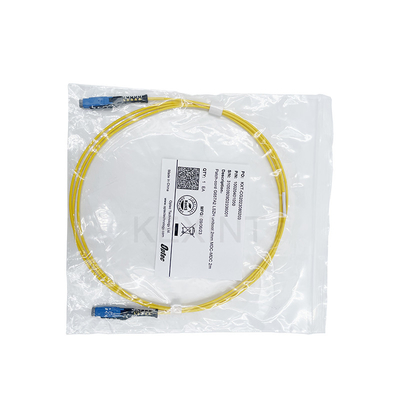

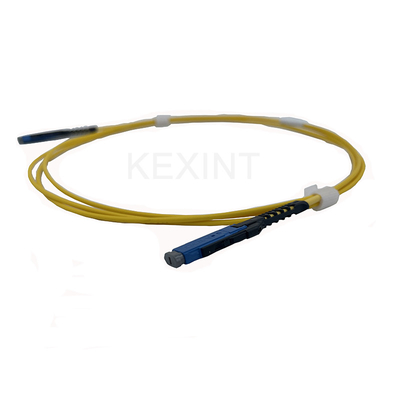

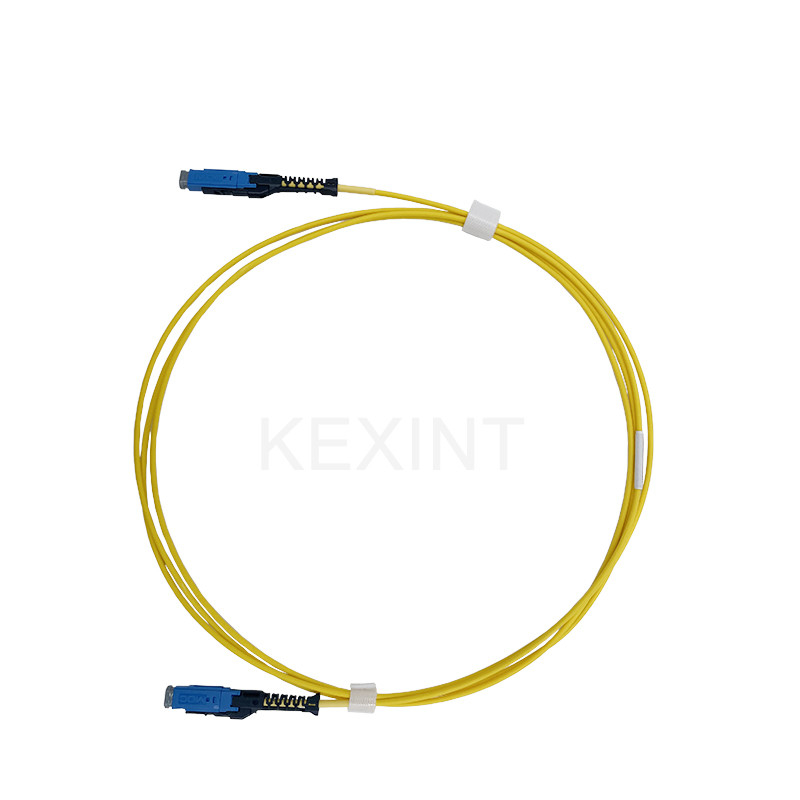

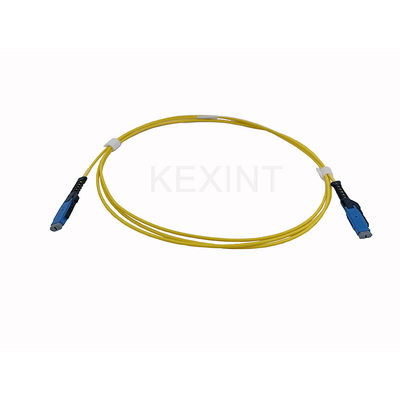

Uniboot 2.0mm 2 Meter Single Mode Patch Cables G657A2 LSZH MDC-MDC / UPC
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | KEXINT |
| Certification: | CE/ROHS/ISO9001 |
| Model Number: | SM 2m MDC/UPC-MDC/UPC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100+ pcs |
|---|---|
| Price: | dollars+23.21+pcs |
| Packaging Details: | cartoon |
| Delivery Time: | 8 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000+pcs+day |
|
Detail Information |
|||
| Connector Type: | MDC/UPC | Fiber Type: | SM |
|---|---|---|---|
| Single-Mode Fiber: | G657a2 | Color: | Yellow |
| Length: | 2 M | Diameter: | 2.0mm |
| Sheath Material: | LSZH | ||
| High Light: | kexint,2.0mm single mode patch cables,2 meter single mode patch cables |
||
Product Description
The MDC patch cord uses US CONEC's ELiMEN™ MDC connector, which is a very small form factor (VSFF) duplex optical connector designed to terminate multi-mode and single-mode optical cables with a diameter of less than 2.0mm. The MDC connector is manufactured using 1.25mm ferrule technology and meets IEC61753-1 Class B insertion loss requirements.
MDC trunk multimode cable assemblies faciliate rapid deployment of high density backbone cabling in data centers and other high fiber environment , reducing network installation or reconfiguration time and cost , they are used to interconnect cassettes,plane or fan outs , It offered in fiber types in standard 8/12/24/48 cores version using a compact and rugged micro cables structure.
Application:
1.Data communication network;
2.Optical system access network;
3.Storage area network fiber channel;
4.High density architectures.
1. There are two 1.25mm ferrules in one connector housing
2. Push-pull sheath for inserting and unplugging connectors
3. Easily perform polarity conversion without exposed optical fiber:
4. Comply with IEC61753-1 Class B insertion loss requirements
5. Comply with Telcordia GR-326 and TIA-568 standards;
6. Designed for cables with an outer diameter of less than 2.0mm
7. Provide MM, SM and SM APC
8. Optical fiber wiring density is 3 times that of LC
Application Environment:
Several emerging transceiver multi-vendor protocols (MSAs) have defined port fan-out (breakout branching architecture). For duplex optical connectors to have smaller package sizes than LC connectors, the reduction in MDC connector size will allow A single transceiver accommodates MDC jumpers that plug directly into the transceiver interface. The new transceiver packaging format will support four pairs of MIDC connector cables in an OSFP package optical module or an SFE package optical module. Supports two pairs of MDC connectors. The connector density on the module panel is increased, minimizing hardware size, investment and operating costs. One rack unit RU can accommodate 144 fibers with LC duplex connectors and adapters. Use more The small MDC connector can increase the number of fiber cores to 432 cores in the same 1RU space.
Specification
