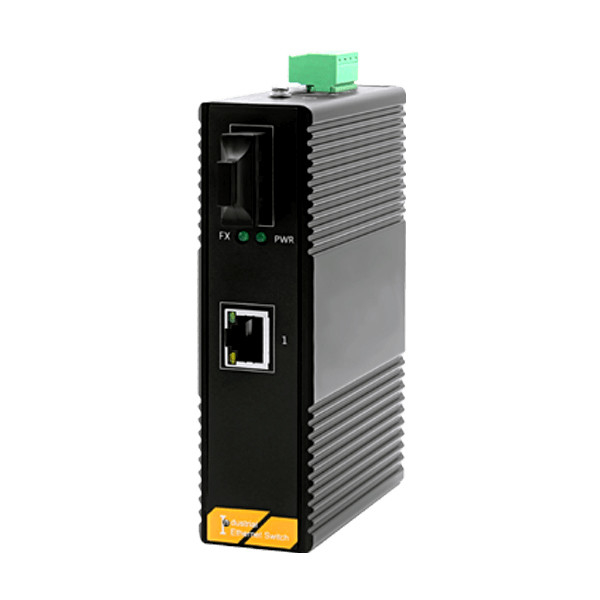

KEXINT Gigabit 1 Optical Port 4 Electrical Port Industrial (POE) Transceiver Media Converter
Product Details:
| Place of Origin: | china |
| Brand Name: | KEXINT |
| Certification: | ISO9001/CE |
| Model Number: | COME-G0104 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10+pieces |
|---|---|
| Price: | 34.45+dollar+piece |
| Packaging Details: | carton |
| Delivery Time: | 8 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000+pcs+day |
|
Detail Information |
|||
| Shell: | Metal Profiles | Protection Level: | IP40 |
|---|---|---|---|
| Size: | 124*89*33.5mm | Net Weight: | 0.325kg |
| Installion: | Guide Rail Installation | Input Voltage: | DC48V-54V |
| Output Power: | Single Port Max. 30W | Line Pair: | 1/2(+);3/6(-) |
| Highlight: | POE Transceiver Media Converter,COME-G0104 |
||
Product Description
KEXINT Gigabit 1 Optical Port 4 Electrical Port Industrial Grade (POE) Transceiver Media Converter
COME-G0104 Gigabit industrial-grade transceiver, provides 1-4 10/100/1000Base-TX ports, optionally supports IEEE802.3af/at standard POE output, and 1 Gigabit optical port uplink; supports -40~+ 85℃ high and low temperature operating range, using fanless heat dissipation design, redundant circuit design, high protection level and other technologies, providing excellent industrial-grade quality to ensure stable operation of equipment in harsh environments; widely used in industrial control automation, road Traffic control automation, building automatic control systems, mine automatic control systems, oil field control automation, hydropower station control automation, power system control automation, computer room monitoring systems and other industrial application scenarios.
Flexible interface configuration to meet different needs
1.Provides 1 Gigabit optical port, multiple optical interfaces available
2.Provides up to 4 Gigabit Ethernet ports, supporting 10/100M auto-negotiation, full/half-duplex auto-negotiation, and crossover/straight-line auto-negotiation
Support IEEE802.3 international standards and protocols to improve network compatibility
Support IEEE802.3, IEEE802.3i 10BASE-T, IEEE802.3u 100BASE-X, IEEE802.3z 1000Base-T, IEEE802.3ab 1000Base-X, IEEE802.3x Flow Control, etc.
Excellent industrial quality, adaptable to harsh environment applications
1.Supports industrial-grade wide temperature working range from -40℃ to +85℃, adapting to harsh climate environments
2.Fanless design reduces power consumption while extending the life of the machine
3.Anti-surge, anti-lightning, anti-dust, anti-static interference and other strong protection designs
4.Supports rail installation, wall-mounted installation and desktop installation

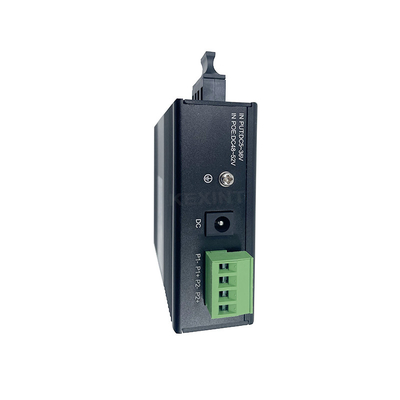

5.4-pin power interface design, supports dual power backup, non-polarity and anti-reverse connection
POE power over Ethernet, simplifying wiring
Supports POE Ethernet power supply, complies with IEEE802.3AF and IEEE802.3AT standards, and can output up to 30W of power per port
Reliability and qualification certification
1.EMC Class A, ESD level 4,
2.ESD IEC 61000-4-2 Level 4,
3.Fast burst IEC 61000-4-4 Level 4,
4.Surge protection IEC 61000-4-5 Level 4
Typical Application:
Specification
