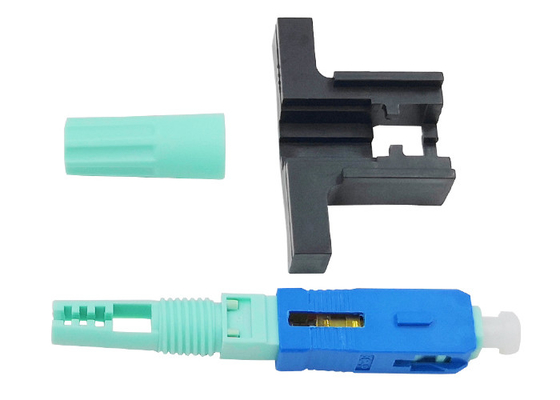

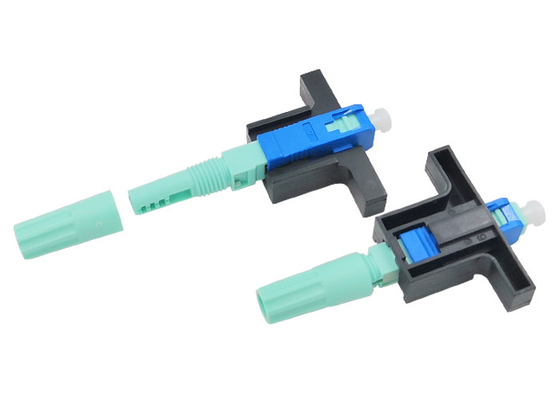

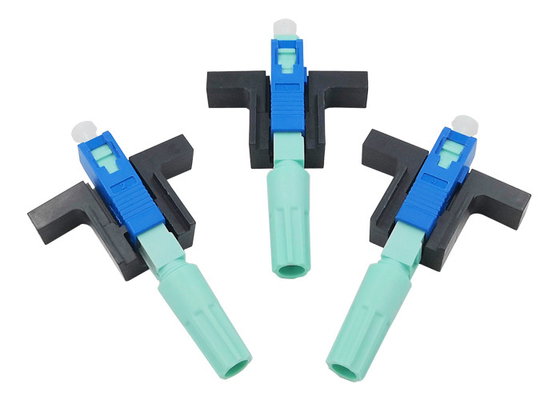

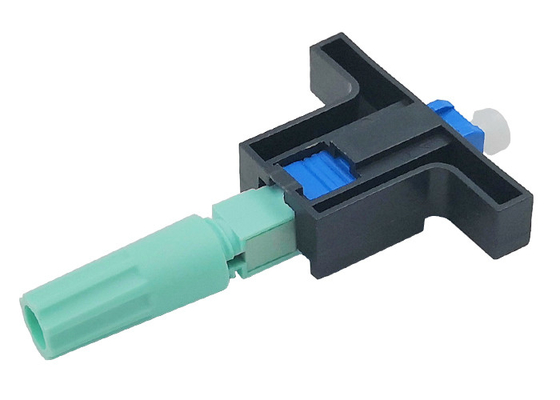

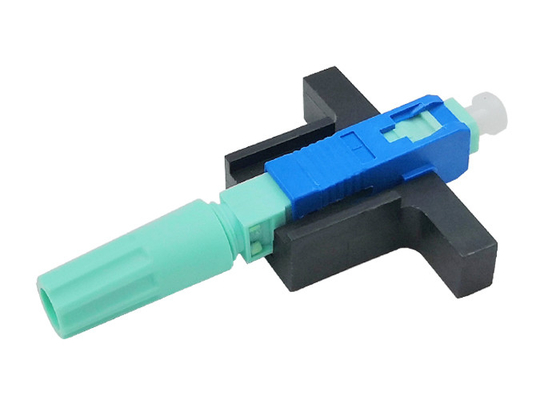

FTTH SC UPC Fiber Optic Quick Connector Single Mode SC/UPC Fast Connector 200 S Ceramic V Slot
100
MOQ
0.565$
Price
FTTH SC UPC Fiber Optic Quick Connector Single Mode SC/UPC Fast Connector 200 S Ceramic V Slot
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Shenzhen china
Brand Name: KEXINT
Certification: ISO 9001-2015
Model Number: KXT-FASC-SC-UPC
High Light:

optical cable adapter

,

optical cable joiner

Payment & Shipping Terms
Packaging Details: 1 pcs/1 package
Delivery Time: 8
Payment Terms: D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000+PCS+1day
Specifications
Insertion Loss: 0.3dB
Return Loss: 55 DB
Repeat Times: 30
Color: Blue
Mode: Single Mode
Length: 51mm
Tensile Strengh: 10 Kg
V Slot Material: Ceramic V Slot
Product Description

FTTH SC UPC Fiber Optic Quick Connector Single Mode SC/UPC Fast Connector Low loss 0.3dB

The Fast Connector (Field Assembly Connector or Field terminated fiber connector, quickly assembly Fiber connector) is a revolutionary field installable optical fiber connector that requires no epoxy and no polishing. The unique design of the patented mechanical splice body incorporates a factory-mounted fiber stub and a pre-polished ceramic ferrule. Using this onsite assembly optical connector, it is possible to improve the flexibility of optical wiring design as well as reducing the time required for fiber termination. The Fast connector series are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and FTTH.SC embedded fiber optic connector quick connector cold, using A ferrule insertion loss, operability / reuse / stable performance, low cost, fast installation and so on.

Specifications:
Product Name: embedded fiber optic connector quick connector cold
Model: SC / UPC-P
The average insertion loss: ≤0.3db
Return loss: ≥48db
Temperature cycle: -40 ~ + 85 / 168h
Variation: ≤0.2db
Rally: ≥35N
Torque: ≥25N
Repeat assembly: ≥15 times
Variation: ≤0.2db
Size:60x9mm/2.36x0.35"
Carrier-class standards: Each ferrule have been detected within the optical loss -0.5db, it has reached the level of telecommunications standards

Features:



1) Factory-installed fiber stub.
2) No epoxy and polishing required, No special tools needed when installed.
3) Can be intalled and maked repeatedly thus avoiding loss.
4) Easily installed, Quick and easy fiber termination in the field.
5) Only 30 seconds needed to learn the process of installation and making.
6) Cost effective, Warranty: One year.
7) Fast connecting and repeat, No special tools needed when installed.
8) Can be made on-site without splicing connectors.
9) Eliminates cable excess length and pigtail splice storage.

Applications:


1. Patch panels
2. Distribution frames
3. Maintenance or emergency restoration of fiber networks
4. FTTH Outlets
5. Connection at the desk for LAN environments
6. Fiber Optic Patch Cord & Pigtail
7. Telecommunication Devices
8. Data Communications Networks
9. Optical Fiber LAN and Access Network
10. Industry and Military Applications



FTTH SC UPC Fiber Optic Quick Connector Single Mode SC/UPC Fast Connector 200 S Ceramic V Slot 0


Item SC/UPC Fast Connector
Insertion Loss

Typical ≤0.3dB

Maximum ≤0.5dB

Return Loss ≥50dB
Polish SC/APC
Cable Diameter 2.0×3.0mm
Tensile Strengh >3kg
Thermal Stability ≤0.3 dB(-40~+75 °C)
Operating temperature -40~+75 °C



Shipping time

FTTH SC UPC Fiber Optic Quick Connector Single Mode SC/UPC Fast Connector 200 S Ceramic V Slot 1

7000 pcs can be produced every day.



FTTH SC UPC Fiber Optic Quick Connector Single Mode SC/UPC Fast Connector 200 S Ceramic V Slot 2
