Powered FTTH Passive Fiber Optic Splitter UPC 0.9mm 55 DB Return Loss

Product Description

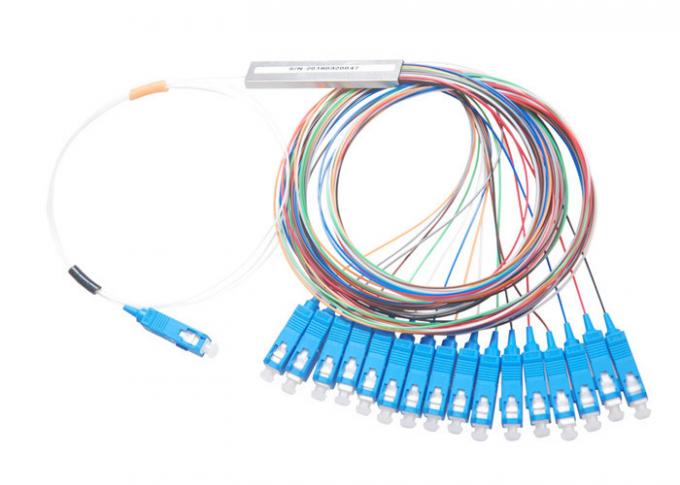

1×16 Mini Module 0.9mm cable Fiber Optical PLC Splitter 1*16 0.9 SC/UPC Miniature Optical splitter G657A1 Hytrel

PLC 1×16 Single Mode Fiber Optical Splitter SC/APC Connector splitter plc Neutral package or Customzied packing way. then put into a carton.
Bare PLC splitter is putting PLC splitter chip and input, output optical fiber array in a square metal tube, out with the diameter of 0.9mm or 250um bare fiber ,fiber can be welded, can also be processing various types of optical fiber connector.

Features

·  Low insertion loss
·  Low Polarization Dependent Loss
·  Excellent Environmental Stability
·  Excellent Mechanical Stability
·  Telcordia GR-1221 and GR-1209
·  Optional connectors termination upon request
·  Available in 250um & 900um fiber, 2mm or 3mm


Specifications

1XN PLC Specifications
Port Configuration		1x2	1x4	1x8	1x16	1x32	1x64
Fiber Type	G652D/G657
Operating Wavelength(nm)	1260-1650
Insertion Loss(dB)	Typical	3.9	7.2	10.3	13.6	16.7	20.2
	Max	4.1	7.4	10.5	13.8	16.9	20.4
Loss Uniformity(dB)	Max	0.6	0.8	0.8	1.0	1.5	1.8
Return Loss(dB)	Min	55	55	55	55	55	55
Polarization Dependent Loss(dB)	Max	0.3	0.3	0.3	0.3	0.3	0.4
Directivity(dB)	Min	55	55	55	55	55	55
Wavelength Dependent Loss(dB)	Max	0.3	0.3	0.3	0.5	0.8	0.8
Temperature Dependent Loss (-40~+85℃)(dB)	Max	0.5	0.5	0.5	0.5	0.8	1.0
Operating Temperature(℃)	-40~+85
Storage Temperature(℃)	-40~+85
Package Dimension(mm)	Fan-out	60x7x4	60x7x4	60x7x4	60x7x4	80x20x6	100x40x6
	Bare	40x4x4	40x4x4	40x4x4	50x7x4	50x7x4	60x12x4
	Module	100x80x10	100x80x10	100x80x10	120x80x18	120x80x18	141x115x18
	Chassis	40x4x4	40x4x4	40x4x4	50x7x4	50x7x4	60x12x4





Our advantage :



1: We are a factory with more than 200 employees and short delivery times.

 2: The product has passed strict testing and the quality is guaranteed.

 3: South Korea imports chips, work is more stable;

 4: 100% support after-sales service, if there is a problem in the product use process, we can replace it for you for free.



Why Choose  Kexint?



1. Quality system of ISO900,CE,FCC,ROHS registration
2. Manufacture system
3. R&D system
4. Purchasing system
5. Prompt delivery and remarkable services
6. Reasonable prices
7. Accept orders according to customer's demands
8. Rich experience of OEM & ODM co-operation
9. Shipment,payment and delivery
