ABS 1x8 Optical Splitter 10.3dB Miniature High Stability Reliability

ABS 1x8 Optical Splitter 10.3dB Miniature High Stability Reliability

    • ABS 1x8 Optical Splitter 10.3dB Miniature High Stability Reliability
    • ABS 1x8 Optical Splitter 10.3dB Miniature High Stability Reliability
    • ABS 1x8 Optical Splitter 10.3dB Miniature High Stability Reliability
    • ABS 1x8 Optical Splitter 10.3dB Miniature High Stability Reliability
    • ABS 1x8 Optical Splitter 10.3dB Miniature High Stability Reliability
    • ABS 1x8 Optical Splitter 10.3dB Miniature High Stability Reliability
  • ABS 1x8 Optical Splitter 10.3dB Miniature High Stability Reliability

    Product Details:

    Place of Origin: SHENZHEN
    Brand Name: KEXINT
    Certification: ISO-9000
    Model Number: PLC-1*8-SC/APC

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Negotiation

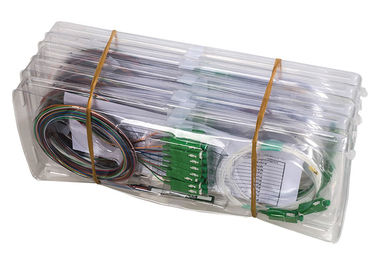

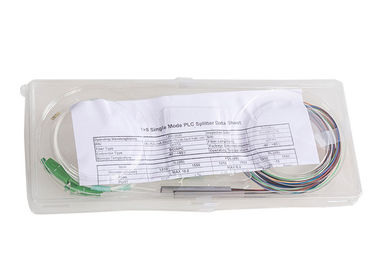

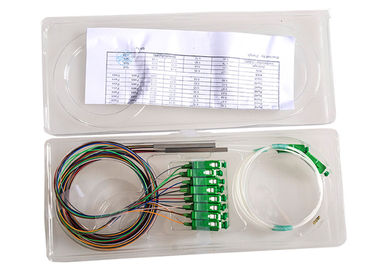

    Packaging Details: Plastic blister box /carton
    Delivery Time: 7
    Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 2000+PCS+1day
    Contact Now
    Detailed Product Description
    Features: Low Insertion And PDL Wide Wavelength Range Tube Material: Hytrel
    Type: 1x8 Type Connector: SC/APV
    Operting Wavelength Range: 1260-1650 Fiber Type: G657A1
    Color Of Cable: 12 Colors IL(dB): 10.3dB

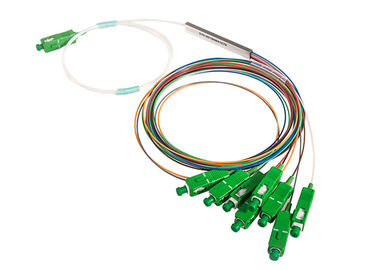

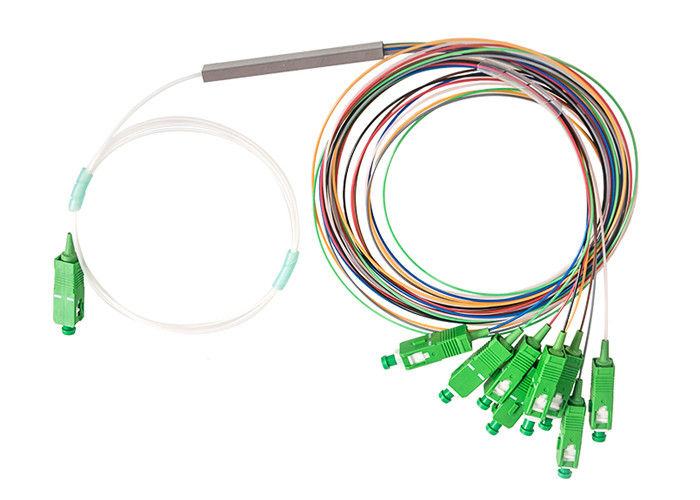

    Mini Module 0.9 Fiber Optical PLC Splitter 1*8 0.9 SC/APC 1×8 Miniature Optical splitter G657A1 Hytrel

         KEXINT provides a various of 1×N and 2×N PLC splitters, They are all with superior optical performance, high stability and high reliability to meet various application requirements. PLC 1×8 Single Mode Fiber Optical Splitter SC/APC Connector splitter plc Neutral package or Customzied packing way. then put into a carton.Bare PLC splitter is putting PLC splitter chip and input, output optical fiber array in a square metal tube, out with the diameter of 0.9mm or 250um bare fiber ,fiber can be welded, can also be processing various types of optical fiber connector.



    Features:

    Low insertion loss,high return loss
    FTTX networks
    low PDL
    Environmental stable
    1*N Black box plc splitter are based on the Planar Waveguide Technology. They provide a cost effective and space saving networking solution,key components in FTTX networks

    Application:
    Fiber to The Home (FTTH)
    Passive optical networks (PON)
    Local Area Networks (LAN)
    Cable Television (CATV)



    Performance Index

    Type Unit 1 X 4 1 X 8 1 X 16 1 X 32
    Optical Fiber diameter um 9/125 um(smf-28)
    wavelength nm 1260~1620
    Insertion Loss dB <7.0 <10.6 <14.0 <17.3
    Uniformity dB <0.6 <1.0 <1.5 <2.3
    PDL Loss dB <0.30 <0.30 <0.30 <0.30
    Directivity dB >55
    Return Loss dB >50
    Operation Temperature -40~ +85
    Storage Temperature -40 ~ +85
    Device Dimension mm 4 0X 4 X 4 4 0X 4 X 4 5 0X 4 X 4 5 0X 7 X 4
    Mini-Module Dimension mm 5 0X 7 X 4 5 0X 7 X 4 6 0X 12 X 4 8 0X20 X 6
    Module Dimension mm 100 X 80 X 10 100 X 80 X 10 120 X 80 X 18 140 X 115 X 18



    ABS 1x8 Optical Splitter 10.3dB Miniature High Stability Reliability

    Our advantage : 1:We are a factory with more than 200 employees and short delivery times.
                              2:The product has passed strict testing and the quality is guaranteed.
                              3:South Korea imports chips, work is more stable;






    ABS 1x8 Optical Splitter 10.3dB Miniature High Stability Reliability
