KEXINT SM MM Optical Fiber Connectors PC/UPC/APC Polishing Adjustable Angled Boots
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | KEXINT |
| Certification: | CE/ROHS/ISO9001 |
| Model Number: | KXT-B1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100+pcs |
|---|---|
| Price: | 0.03+$+piece |
| Packaging Details: | box |
| Delivery Time: | 10 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, MoneyGram |
| Supply Ability: | 100000+PCS+Day |
|
Detail Information |
|||
| Fiber Type: | SM/MM | Connector Type: | SC FC LC ST |
|---|---|---|---|
| Polishing: | PC/UPC/APC | Insert Loss: | ≤0.25 DB |
| Return Loss: | MM >20dB SM>60dB | Repeatability: | ≥500 Times |
| Operating Temperature: | -40℃~85℃ | ||
| Highlight: | SM Optical fiber connectors,MM Optical fiber connectors,Angled Boots Fiber Optic Connector |
||
Product Description

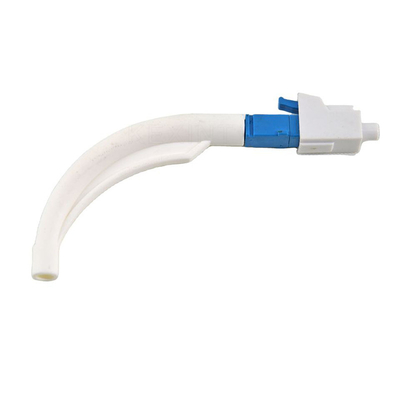

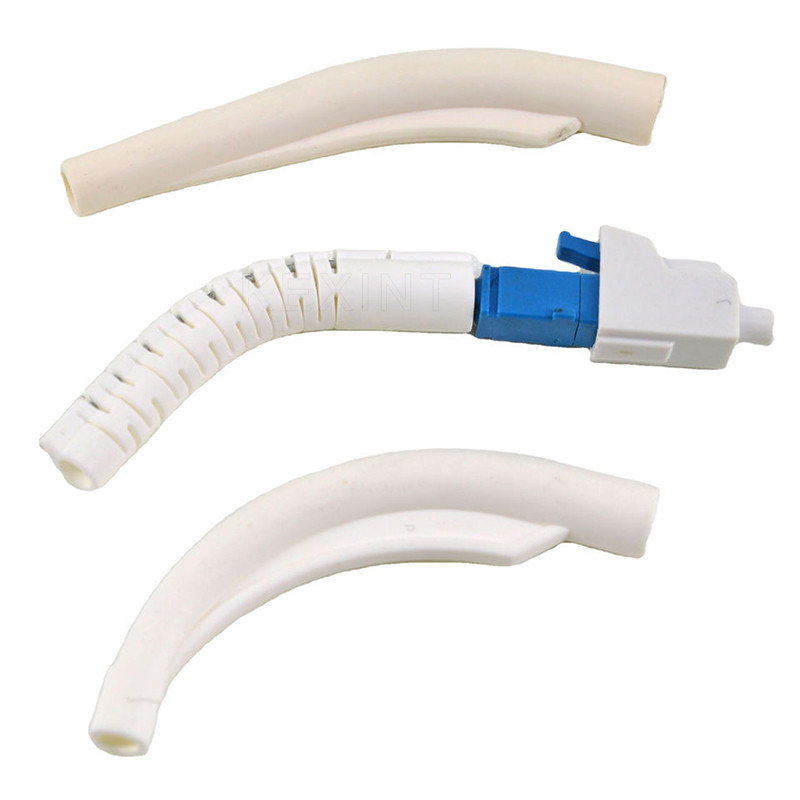

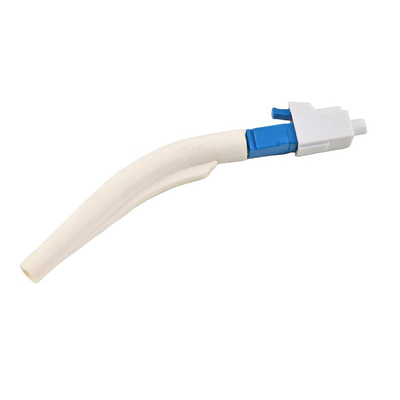

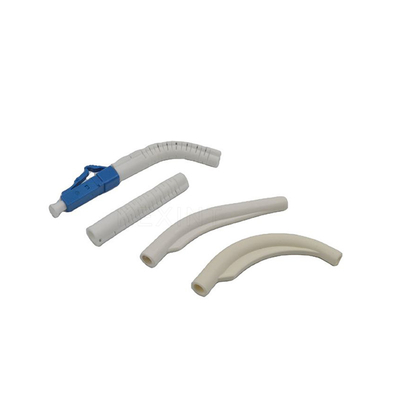

KEXINT SM MM Fiber Optic Pre assembly Connector Fiber Connectors Adjustable Angled Boots
Optical fiber connectors are the most widely used optical passive components in optical fiber communication systems. Most optical fiber connectors are composed of three parts: two optical fiber connectors and a coupler. Two optical fiber connectors are installed into the two optical fiber tail ends; the coupler acts as an alignment sleeve. In addition, the couplers are mostly equipped with metal or non-metal flanges to facilitate the installation and fixation of the connectors.
Feature:
-Low insertion loss and back reflection loss;
-Ferrule end surface pre-domed;
-Precision anti-rotation key and corrosion resistant body;
-UL-rated plastic housing;
-Telcordia style boots;
-Free-floating ceramic ferrule;
-Zirconia sleeves or Phosphor bronze sleeves;
-D-shaped easily installs into panel mount;
-RoHS compliant.
Application:
-Fiber Optic Telecommunications;
-LAN (Local Area Network);
-FTTH (Fiber To The Home);
-CATV&CCTV System;
-High speed transmission systems;
-Fiber optic sensing;
-Industtial, Mechanical and Military.
