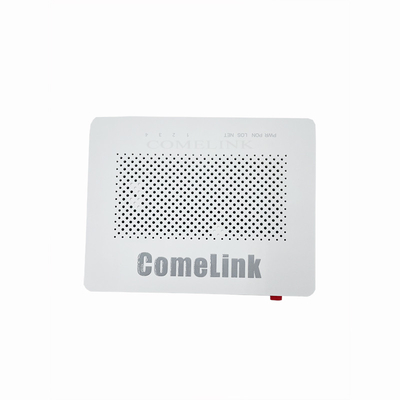

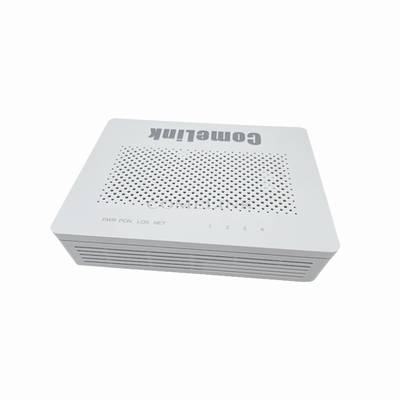

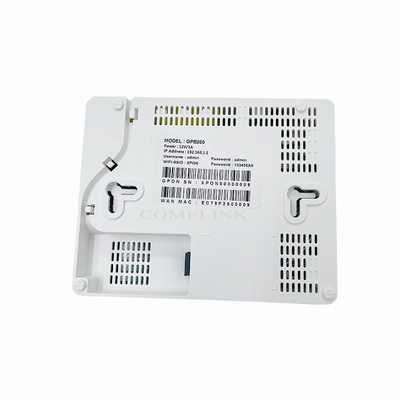

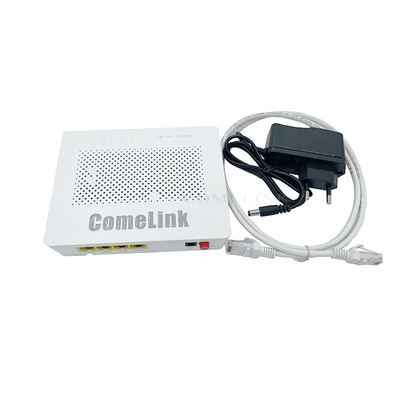

Ftth 4ge 1 Power Port Xpon G Epon Onu Ont Fiber Optical Equipment
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | KEXINT |
| Certification: | CE/ROHS/ISO9001 |
| Model Number: | KXT-GPB200 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | dollars+6.2+piece |
| Packaging Details: | boxes |
| Delivery Time: | 8 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000+piece+week |
|
Detail Information |
|||
| Color: | White | Firmware Language: | English |
|---|---|---|---|
| PON: | XPON | Power Supply: | DC 12V 1A 1.5A |
| Optical Wavelength: | T*1310nm,Rx 1490nm | Adaptor Type: | SC/UPC SC/APC |
| High Light: | ftth gepon onu 4ge,ftth g epon onu,4ge g epon onu |
||
Product Description
Note: We can provide samples for free
Product features:
1. Comply with ITU-T g.984 standard
2. Comply with H.248, MGCP and SIP protocol standards
4. It supports layer 2 switching of Ethernet services and line speed forwarding of uplink and downlink services
6. Support the standard 802.1Q VLAN function and VLAN conversion
7. 4094 VLANs supported
8. Support dynamic bandwidth allocation
10. Support QoS, including service flow classification, priority marking, queuing and scheduling, traffic shaping and traffic
control
11. Support 2.6.3 IgM snooping
12. Support Ethernet port speed limit, loop detection and layer-2 isolation
13. Support power failure alarm
14. Support remote reset and restart functions
15. Support the function of restoring factory parameters
16. Support data encryption
17. Support status detection and fault reporting
18. Support power lightning protection
19. support GPON / EPON dual mode

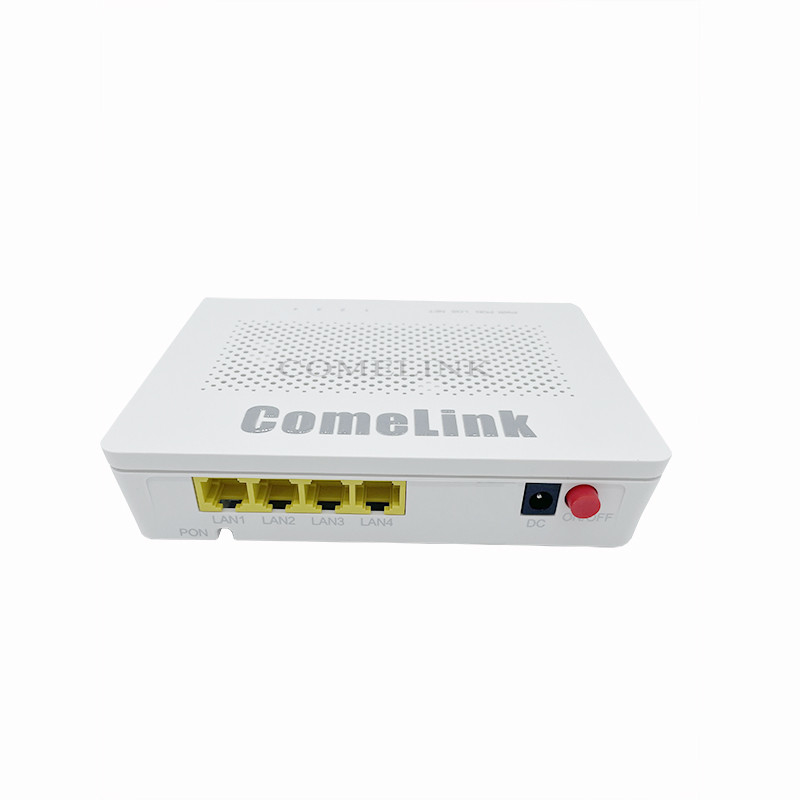

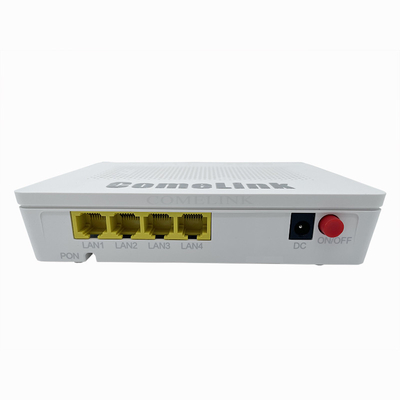

Port characteristics:
1. PON: connect the OLT equipment at the source end through the optical fiber line
2. Ethernet port: connected to user side equipment through twisted pair network cable, lan 1 port speed is 10 / 100 / 1000 m, adaptive, lan 2 - lan 4 Port rate is 10 / 100 M adaptive
3. Reset button: restart the equipment; Press and hold for more than 3 seconds and the system will return to the factory default
4. Led button: LED indicator on / off
5. Power switch: power on / off
6. Power interface: connected to external power supply
Optical properties:
1. support wavelength division multiplexing technology, single fiber dual wave bidirectional transmission
2. interface type: SC / APC or SC/UPC
3. maximum spectral ratio: 1:128
4. rate: uplink 1.25gbps, downlink 2.5Gbps
5. transmission wavelength: 1310 nm
6. receiving wavelength: 1490 NM
7. output optical power: - 1 ~ + 4dbm
8. receiving sensitivity: < - 27dBm
9.The longest distance between OLT and ONU is 20km
Physical properties:
1.Power supply: 12 V / 1 A
2.Operating temperature: - 5 ~ 55 ℃
3.Storage temperature: - 40 ° ~ 70 °
4.Chassis specification: 250 * 140 * 80 mm (length * width * height)
