Ftth Xpon Ont 1ge + 3 Fe + 1 Wifi 2.4g 5g Dual Channel + 1 Ports + 2 Usb + 1 Power
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | KEXINT |
| Certification: | CE/ROHS/ISO9001 |
| Model Number: | COMELINK XP515 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100+ pcs |
|---|---|
| Price: | USD+16.43+PCS |
| Packaging Details: | carton |
| Delivery Time: | 8 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000+PCS+month |
|
Detail Information |
|||
| Power Supply: | 12V / 1A | Output Optical Power: | - 1 ~ + 4dbm |
|---|---|---|---|
| Receiving Sensitivity: | < - 27dBm | Receiving Wavelength: | 1490 Nm |
| Transmission Wavelength: | 1310 Nm | Maximum Spectral Ratio: | 1:128 |
| Rate: | Uplink 1.25gbps, Downlink 2.5Gbps | ||
| High Light: | ftth xpon ont,dual channel xpon ont,ftth ont xpon |
||

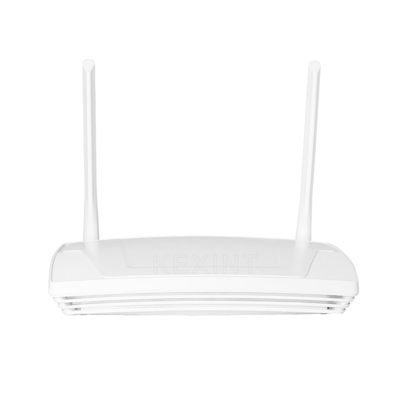

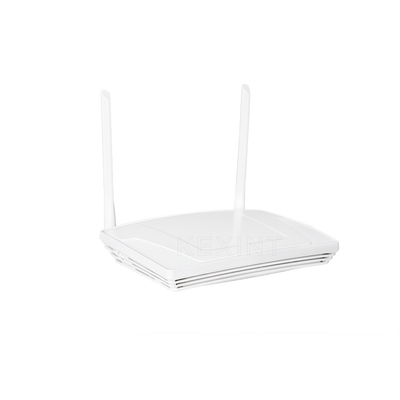

Product Description
COMELINK XP515 GEPON ONU is our latest product which offer: 1GE interface,3 FE interfaces, 1 WIFI interface interface. It’s suitable for home and small enterprises use and well fit for FTTH high speed data transfer.It fully comply with IEEE 802.3-2005 and ITU-T G.984.x . It is operative, manageable and maintainable at telecommunication level, and can provide high speed data service for customers. It has a PON uplink port that connects to office end apparatus through optical fiber.
Product features:
➤ Comply with ITU-T g.984 standard
➤ Comply with H.248, MGCP and SIP protocol standards
➤ Comply with 802.11 n / B / g protocol standard
➤ It supports layer 2 switching of Ethernet services and line speed forwarding of uplink and downlink services
➤ Support frame filtering and suppression
➤ Support the standard 802.1Q VLAN function and VLAN conversion
➤ 4094 VLANs supported
➤ Support dynamic bandwidth allocation
➤ Support PPPoE, ipoe, bridge and other services
➤ Support QoS, including service flow classification, priority marking, queuing and scheduling, traffic shaping and traffic
control
➤ Support IGMP proxy and IGMP snooping
➤ Support Ethernet port speed limit, loop detection and layer-2 isolation
➤ Support power failure alarm
➤ Support remote reset and restart functions
➤ Support the function of restoring factory parameters
➤ Support data encryption
➤ Support status detection and fault reporting
➤ Support power lightning protection
➤ support GPON / EPON dual mode
➤ Comply with ITU-T g.984 standard
➤ Comply with H.248, MGCP and SIP protocol standards
➤ Comply with 802.11 n / B / g protocol standard
➤ It supports layer 2 switching of Ethernet services and line speed forwarding of uplink and downlink services
➤ Support frame filtering and suppression
➤ Support the standard 802.1Q VLAN function and VLAN conversion
➤ 4094 VLANs supported
➤ Support dynamic bandwidth allocation
➤ Support PPPoE, ipoe, bridge and other services
➤ Support QoS, including service flow classification, priority marking, queuing and scheduling, traffic shaping and traffic
control
➤ Support IGMP proxy and IGMP snooping
➤ Support Ethernet port speed limit, loop detection and layer-2 isolation
➤ Support power failure alarm
➤ Support remote reset and restart functions
➤ Support the function of restoring factory parameters
➤ Support data encryption
➤ Support status detection and fault reporting
➤ Support power lightning protection
➤ support GPON / EPON dual mode

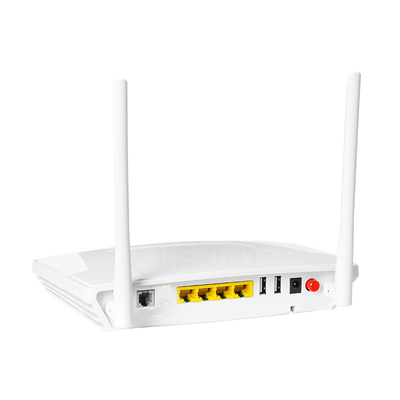

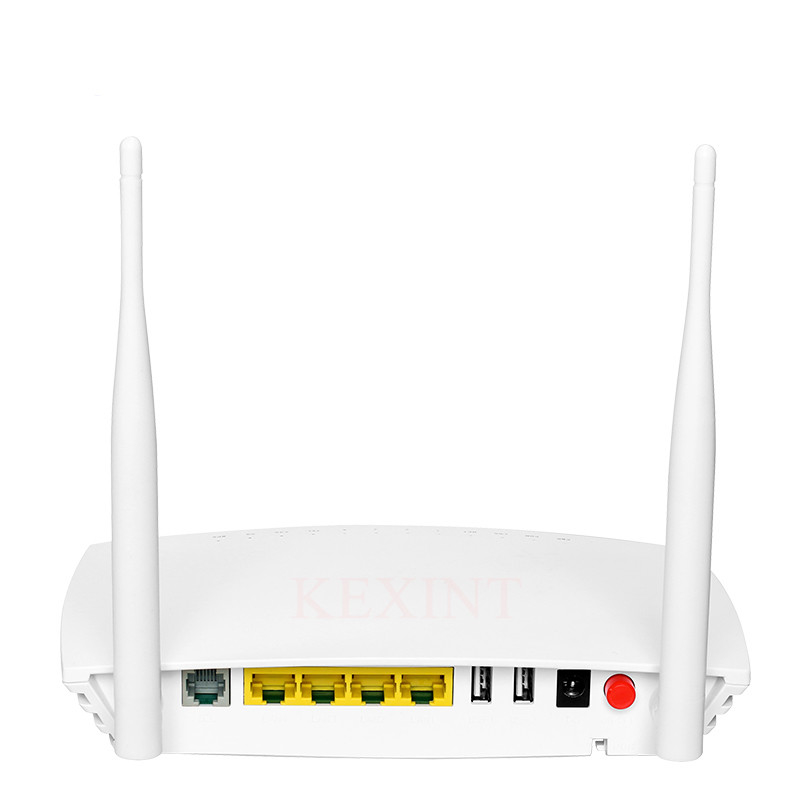

Port characteristics:
✦ PON: connect the OLT equipment at the source end through the optical fiber line
✦ Ethernet port: connected to user side equipment through twisted pair network cable, lan1 port speed is 10 / 100 / 1000m, adaptive, lan2-lan4 end Adaptive port rate of 10 / 100M
✦ Telephone port: connected to user side equipment through telephone line
✦ Reset button: restart the equipment; Press and hold for more than 3 seconds and the system will return to the factory default
✦ WiFi button: wireless routing function on / off
✦ WPS button: WPS is used to simplify Wi Fi wireless security settings and network management, that is, Wi Fi protection settings, which you can set according to the client Support and select the appropriate mode
✦ Led button: LED indicator on / off
✦ Power switch: power on / off
✦ Power interface: connected to external power supply
✦ PON: connect the OLT equipment at the source end through the optical fiber line
✦ Ethernet port: connected to user side equipment through twisted pair network cable, lan1 port speed is 10 / 100 / 1000m, adaptive, lan2-lan4 end Adaptive port rate of 10 / 100M
✦ Telephone port: connected to user side equipment through telephone line
✦ Reset button: restart the equipment; Press and hold for more than 3 seconds and the system will return to the factory default
✦ WiFi button: wireless routing function on / off
✦ WPS button: WPS is used to simplify Wi Fi wireless security settings and network management, that is, Wi Fi protection settings, which you can set according to the client Support and select the appropriate mode
✦ Led button: LED indicator on / off
✦ Power switch: power on / off
✦ Power interface: connected to external power supply
Optical properties:
♣ support wavelength division multiplexing technology, single fiber dual wave bidirectional transmission
♣ interface type: SC / APC
♣ maximum spectral ratio: 1:128
♣ rate: uplink 1.25gbps, downlink 2.5Gbps
♣ transmission wavelength: 1310 nm
♣ receiving wavelength: 1490 NM
♣ output optical power: - 1 ~ + 4dbm
♣ receiving sensitivity: < - 27dBm
♣ The longest distance between OLT and ONU is 20km
♣ support wavelength division multiplexing technology, single fiber dual wave bidirectional transmission
♣ interface type: SC / APC
♣ maximum spectral ratio: 1:128
♣ rate: uplink 1.25gbps, downlink 2.5Gbps
♣ transmission wavelength: 1310 nm
♣ receiving wavelength: 1490 NM
♣ output optical power: - 1 ~ + 4dbm
♣ receiving sensitivity: < - 27dBm
♣ The longest distance between OLT and ONU is 20km

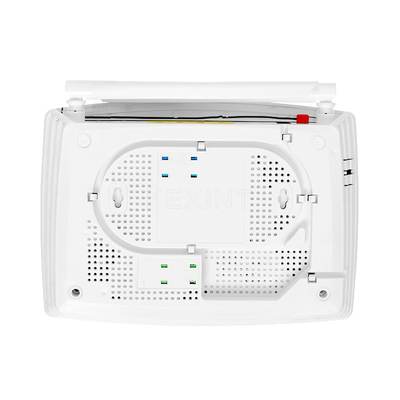

Physical properties:
♠ Power supply: 12V / 1A
♠ Operating temperature: - 5 ~ 55 ℃
♠ Storage temperature: - 40 ° ~ 70 °
♠ Chassis specification: 194 * 152 * 32 mm (L * w * h)
♠ Power supply: 12V / 1A
♠ Operating temperature: - 5 ~ 55 ℃
♠ Storage temperature: - 40 ° ~ 70 °
♠ Chassis specification: 194 * 152 * 32 mm (L * w * h)
