Fiber Optic MTP MPO Attenuator Patch Cord Male APC 12 Core 3dB 5dB 10dB Single Mode
Product Details:
| Place of Origin: | SHENZHEN |
| Brand Name: | KEXINT |
| Certification: | ISO-9001 2015 |
| Model Number: | MPO-ATT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | $+46.88+1pcs |
| Packaging Details: | 20*20*24cm |
| Delivery Time: | 8 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500+pcs+1week |
|
Detail Information |
|||
| Name: | MPO Attenuator | Fiber Type: | Single Mode Attenuation Fiber |
|---|---|---|---|
| Wavelength: | 1310nm Or 1490nm 1550nm | Attenuation: | 3 DB / 5 DB / 10 DB |
| Application: | Telecom/network | Connector Type: | MTP MPO |
| High Light: | mtp fiber optic cable,mtp mpo cable |
||
Product Description

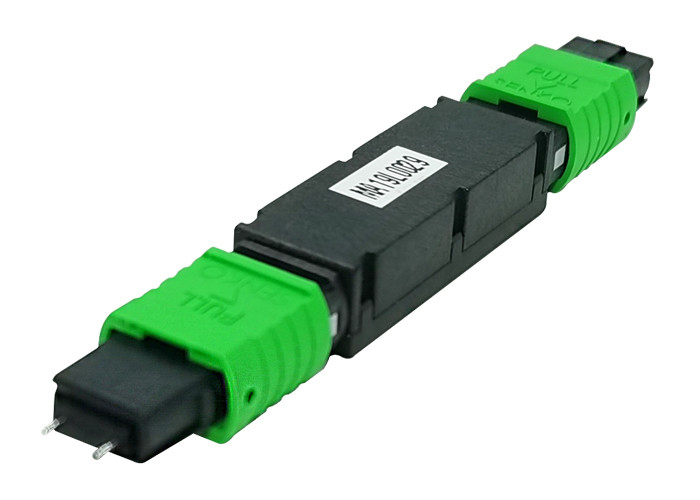

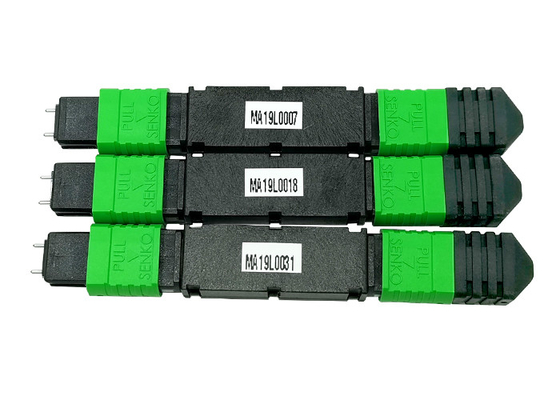

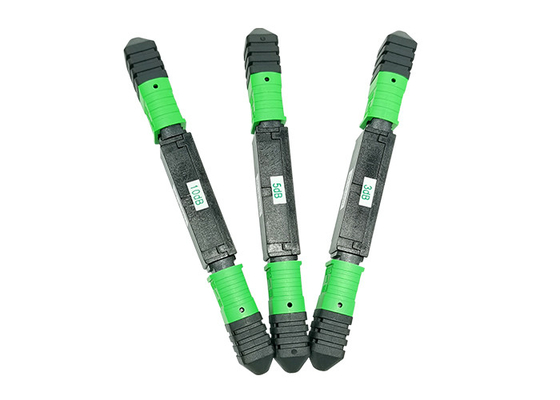

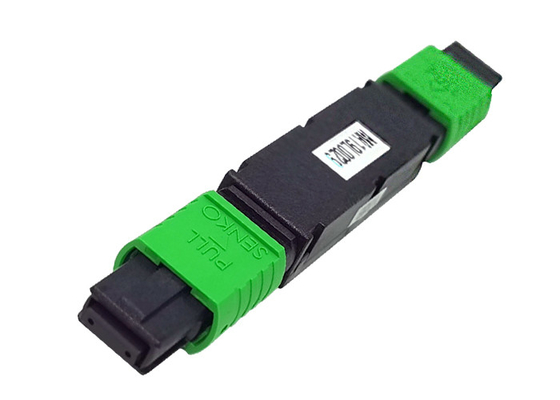

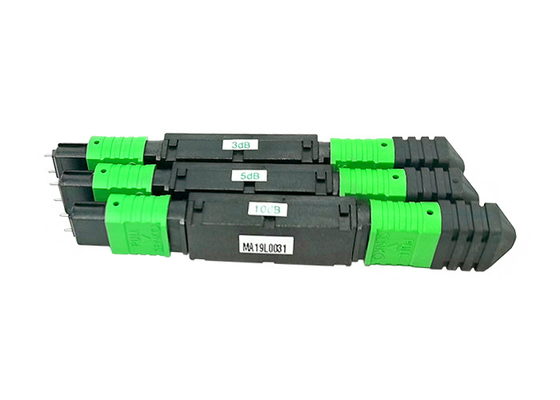

Fiber Optic MTP MPO Attenuator Patch Cord Male APC 12core 3dB 5dB 10dB
MPO attenuator is used to reduce optical-signal electric power in all channels of 40/100G Parallel Optic Transmission, and other equipment with using MPO interconnection. Technique of this product makes network's composition more concise than those of conservative way which is the connection method of Attenuator independently in each channel, as downsizing the volume and saving time. This MPO Attenuator meets TIA/EIA 604-5, and IEC 61754-7 with compliance for RoHS.
Fiber Optic Attenuator is a component installed in a fiber optic transmission system that reduces the power in the optical signal.It is often used to limit the optical power received by the photo detector to within the limits of the optical receiver.
Data Center Infrastructure
Storage Area Network and Fiber Channel
Various 40G and 100Gbps Protocols
Features:
High stability and High Durability
Compact Housing Dimension
QSFP Available (Option of female/male type of MTP connector)
RoHS Compliant
| Parameter | Conditions |
| Operating Wavelength(㎚) | 1310/1550nm |
| Attenuation(dB) | 1~20dB |
| Insertion Loss | 2~10dB(±1dB), 11~20dB(±10%) |
| Return Loss | 60dB(8° Polishing, SM) |
| Operating temperature | 0~75°C |
| Housing Dimension | Height 8.1mm/Length 80.0mm/Width 11.3mm |
Appearance:
There must be no cracks and peeling gilt in appearances of attenuator.
It must also have flawless end-face of ferrule in terms of optical characteristics.
