ABS Box Fiber Optic PLC Splitter 3.0mm G657A1 SC/APC 17.2dB Insertion Loss G657A1
Product Details:
| Place of Origin: | SHENZHEN |
| Brand Name: | KEXINT |
| Certification: | ISO-9000 |
| Model Number: | PLC-1*32-SC/APC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plastic blister box /carton |
| Delivery Time: | 7 |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 800+PCS+1day |
|
Detail Information |
|||
| Wavelenth: | 1260-1650nm | Type: | BOX |
|---|---|---|---|
| Type Of Connector: | SC/APC | Packaging: | 120x80x18 |
| Insertion Loss: | 17.2db | Fiber Mode: | 3.0 G657A1 |
| Operating Temperature: | -40+80 | Fiber Length: | 1m/1.5m |
| Highlight: | abs plc splitter,plc optical splitter |
||
Product Description

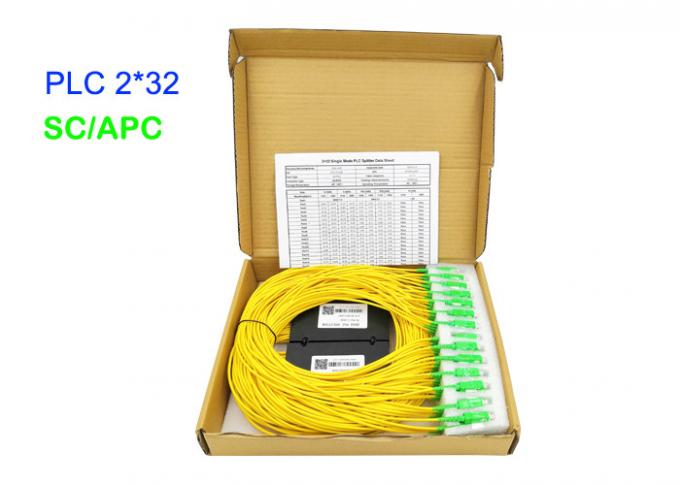

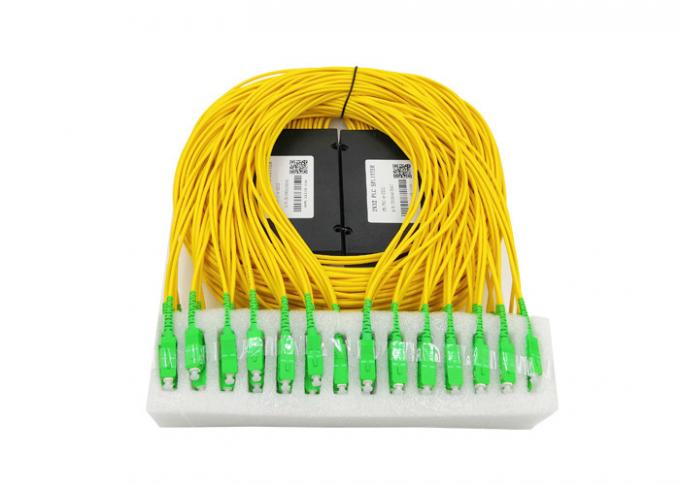

2×32 ABS Box Fiber Optic PLC Splitter 3.0 mm G657A1 SC/APC 17.2 dB G657A1

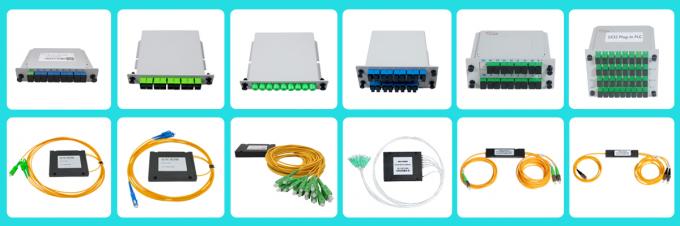

PLC (Planar Lightwave Circuit) splitters are Single Mode Splitters with an even split ratio from one input fiber to multiple output fibers. It is based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability. we are provides a various of 1×N and 2×N PLC splitters, including 1×2 to 1×64 and 2×2 to 2×64 1U Rack Mount type fiber PLC splitters. They are all with superior optical performance, high stability and high reliability to meet various application requirements.
Features
· Low insertion loss
· Low Polarization Dependent Loss
· Excellent Environmental Stability
· Excellent Mechanical Stability
· Telcordia GR-1221 and GR-1209
· Optional connectors termination upon request
· Available in 250um & 900um fiber, 2mm or 3mm
Specifications
| 2XN PLC Specifications | |||||||
| Port Configuration | 2x2 | 2x4 | 2x8 | 2x16 | 2x32 | 2x64 | |
| Fiber Type | G652D/G657 | ||||||
| Operating Wavelength(nm) | 1260-1650 | ||||||
| Insertion Loss(dB) | Typical | 4.2 | 7.6 | 10.8 | 14.1 | 17.0 | 20.5 |
| Max | 4.4 | 7.8 | 11.0 | 14.3 | 17.2 | 20.7 | |
| Loss Uniformity(dB) | Max | 0.6 | 0.8 | 1.0 | 1.2 | 1.5 | 1.8 |
| Return Loss(dB) | Min | 55 | 55 | 55 | 55 | 55 | 55 |
| Polarization Dependent Loss(dB) | Max | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
| Directivity(dB) | Min | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss(dB) | Max | 0.3 | 0.3 | 0.3 | 0.5 | 0.8 | 0.8 |
| Temperature Dependent Loss (-40~+85℃)(dB) | Max | 0.5 | 0.5 | 0.5 | 0.5 | 0.8 | 1.0 |
| Operating Temperature(℃) | -40~+85 | ||||||
| Storage Temperature(℃) | -40~+85 | ||||||
| Package Dimension(mm) | Fan-out | 60x7x4 | 60x7x4 | 60x7x4 | 80x12x4 | 80x20x6 | 100x40x6 |
| Bare | 60x7x4 | 60x7x4 | 60x7x4 | 60x7x4 | 80x12x4 | 80x12x4 | |
| Module | 100x80x10 | 100x80x10 | 100x80x10 | 120x80x18 | 120x80x18 | 141x115x18 | |
| Chassis | 60x7x4 | 60x7x4 | 60x7x4 | 60x7x4 | 80x12x4 | 80x12x4 | |
