SC APC 3.0 MM 1x2 Fiber Optic PLC Splitter ABS Type Use For 2 Cores Distribution Box

SC APC 3.0 MM 1x2 Fiber Optic PLC Splitter ABS Type Use For 2 Cores Distribution Box

Product Details:

Place of Origin: Guangdong，China
Brand Name: KEXINT
Certification: CE/ROHS/ISO9001
Model Number: 1*2 ABS SC/APC

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: 1 - 99 pieces $3.49; 100 - 999 pieces $3.28; >= 1000 pieces $3.19
Packaging Details: Inner Carton+Outer Carton
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000000 meters per Week
Get Best Price Contact Now

Detail Information
Size: 120*80*10 Wavelength: 1260nm To 1650nm
Fiber Type: G657A1 Or Customized Insertion Loss(dB): 4 DB
Lenth Of Cable: 1m Or 1.5m Type Of Connector: SC/APC SC/UPC FC/APC FC/UPC LC/UPC LC/APC
High Light:

SC APC Fiber Optic PLC Splitter

,

1x2 Fiber Optic PLC Splitter

,

ABS Type 1x2 PLC Splitter

Product Description

Description:
1. Optical fiber splitter is a type of optical power management device that is fabricated using silica optical waveguide technology.
2. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely
used in PON networks to realize optical signal power splitting.
3. KEXINT provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet
GR-1209-CORE and GR-1221-CORErequirements.

Features:
Low Insertion loss
Low PDL
Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength: 1260nm to 1650nm
Wide Operating Temperature: -40°C to 85°C
High Reliability and Stability

Compliance:
Telcordia GR-1209-CORE
Telcordia GR-1221-CORE
RoHS

Description:

1. Optical fiber splitter is a type of optical power management device that is fabricated using silica optical waveguide technology.
2. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely      used in PON networks to realize optical signal power splitting.
3. KEXINT provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet
    GR-1209-CORE and GR-1221-CORErequirements.

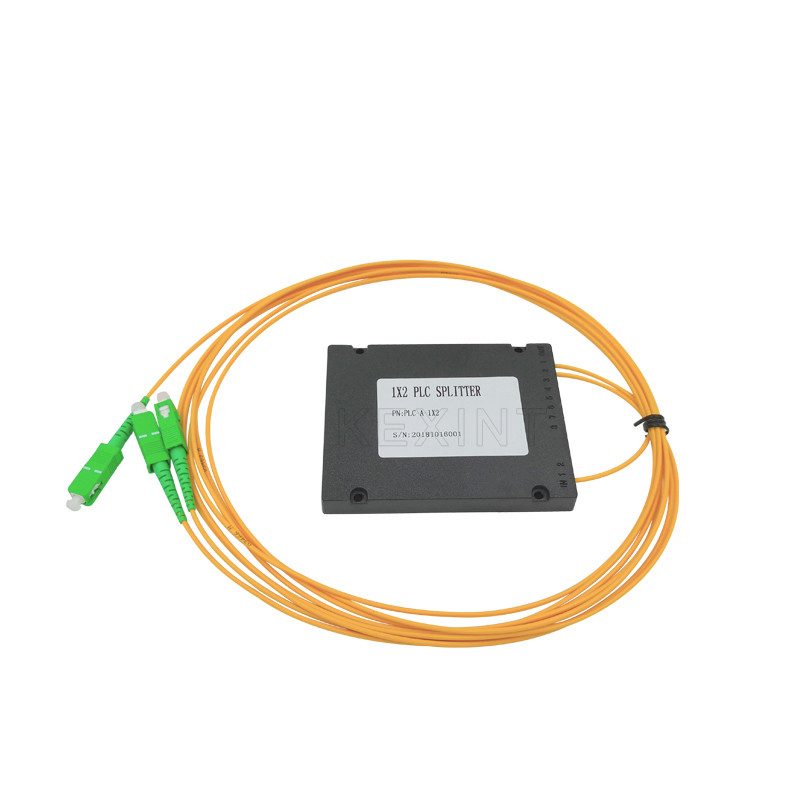

SC APC 3.0 MM 1x2 Fiber Optic PLC Splitter ABS Type Use For 2 Cores Distribution Box 0

Features:
Low Insertion loss
Low PDL
Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength: 1260nm to 1650nm
Wide Operating Temperature: -40°C to 85°C
High Reliability and Stability

Compliance:
Telcordia GR-1209-CORE
Telcordia GR-1221-CORE
RoHS



item
value
Model Number
1*2 ABS SC/APC
Type
Fiber Optical PLC Splitter
Place of Origin
Guangdong, China
Brand Name
KEXINT
Use
FTTX
Warranty Time
2 years
Network
None
Size
120*80*10
type of connector
SC/APC SC/UPC FC/APC FC/UPC LC/UPC LC/APC
Wavelength
1260nm to 1650nm
Lenth of cable
1m or 1.5m
type of fiber
G657A1 /G657A2 /G657 B3
Certification
CE/ROHS/ISO9001
Insertion Loss(dB)
4 dB
Operating temperature
-40℃~85℃
Parameters
1×2
1×4
1×8
1×16
1×32
1×64
Operating Wavelength (nm)
1260~1650
Fiber Type
SMF-28e or customer specified
Insertion Loss (dB)(S/P Grade)
4.0/3.8
7.3/7.0
10.5/10.2
13.7/13.5
16.9/16.5
21.0/20.5
Loss Uniformity (dB)
0.4
0.6
0.8
1.2
1.5
2.5
Return Loss (dB) (S/P Grade)
50/55
Polarization Dependent Loss(dB)
0.2
0.2
0.3
0.3
0.3
0.4
Directivity (dB)
55
Wavelength Dependent Loss(dB)
0.3
0.3
0.5
0.5
0.5
0.5
Temperature Stability(-40~85 °C)(dB)
0.5
Operating Temperature (°C)
-40~85
Storage Temperature (°C)
-40~85

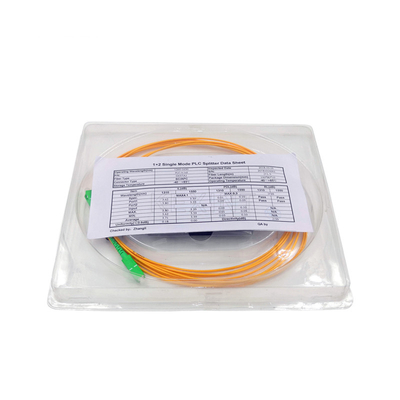

Packing & Delivery

Packing Details: Packaging bag+Outside Carton
Port: Shenzhen, China
Lead Time:
Quantity(pieces)
1-10
>10
Lead Time
15
To be negotiated
Picture Example:
SC APC 3.0 MM 1x2 Fiber Optic PLC Splitter ABS Type Use For 2 Cores Distribution Box 1

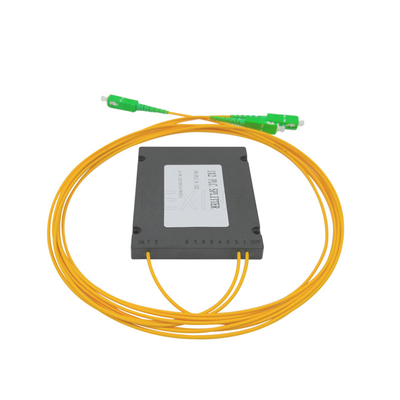

SC APC 3.0 MM 1x2 Fiber Optic PLC Splitter ABS Type Use For 2 Cores Distribution Box 2
